Circuit Schematic

For complete wiring diagrams refer to ms refer to SYSTEM WIRING DIAGRAMS article.

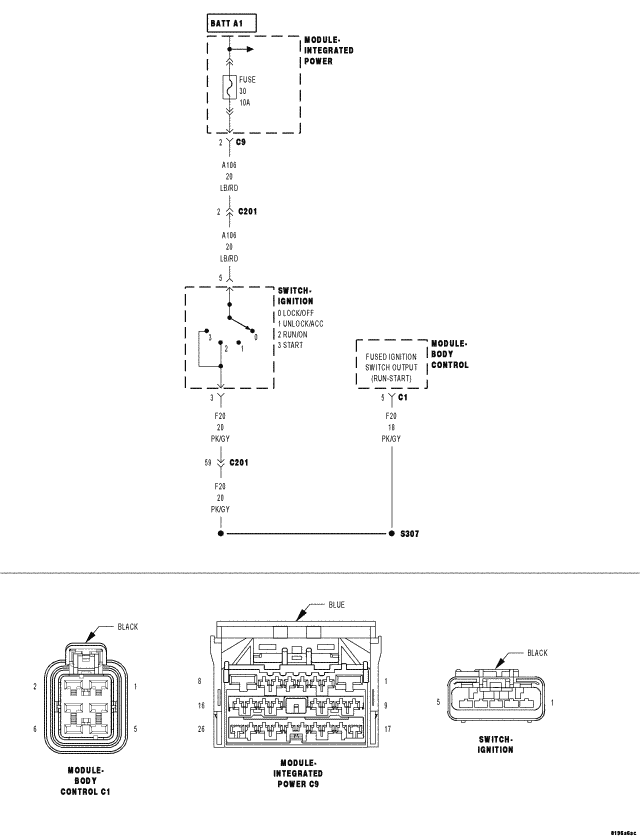

Fig 1: BCM Ignition Run Start Circuit Schematic

GC0048743

Courtesy of CHRYSLER LLC
