Exhaust System-Description

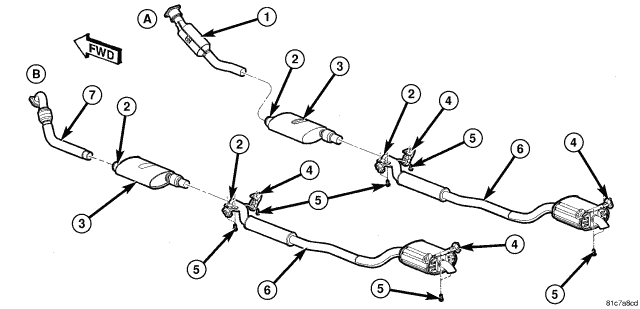

| A - 3.3/3.8L ENGINE | 4 - HANGER |
| B - 4.0l engine | 5 - MOUNTING SCREW |
| 1 - CATALYTIC CONVERTER W/FLEX JOINT | 6 - RT MUFFLER (4.0L ENGINE) |
| 2 - BAND CLAMP | 7 - LH MUFFLER AND RESONATOR ASSEMBLY (4.0L ENGINE) |
| 3 - MUFFLER | 8 - EXHAUST PIPE (without Catalytic converter) |
The exhaust system consists of a catalytic converter, muffler, and a resonator with connecting pipes in-between. The system is serviced in three sections; the catalytic converter, the muffler, and the resonator and tailpipe. A band clamp is used to connect the joint between the muffler and catalytic converter. A band clamp is used to connect the muffler and the resonator and tailpipe. Support hanger rods with rubber isolators are used to support and isolate the exhaust system. A flexible joint, integral to the catalytic converter, allows for engine movement. A second flexible joint is located between the muffler and the resonator/tailpipe assemble to allow for exhaust system movement. The exhaust system is tuned for each vehicle/powertrain combination.
