Fan Radiator Cooling Module 2 Connector End View
Fan Radiator Cooling Module 2 Connector End View

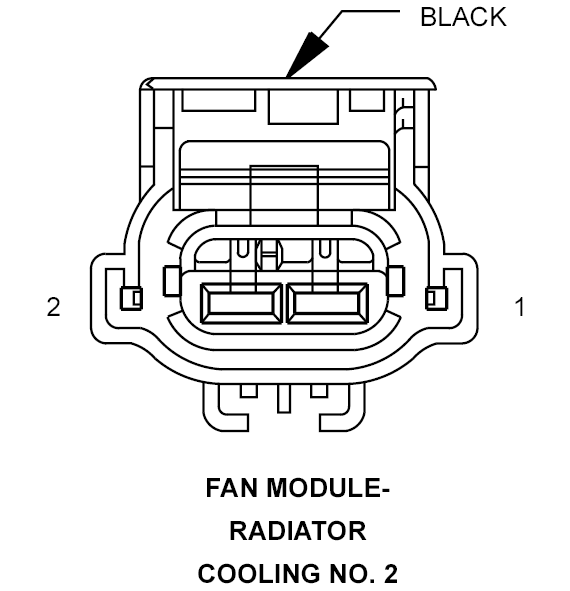

FAN MODULE-RADIATOR COOLING NO. 2 - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
N23 12DB/DG
RADIATOR FAN RELAY OUTPUT
2
Z223 12BK/DG
GROUND
Courtesy of CHRYSLER CORP.
