Fan Radiator Cooling Module 1 Connector End View
Fan Radiator Cooling Module 1 Connector End View

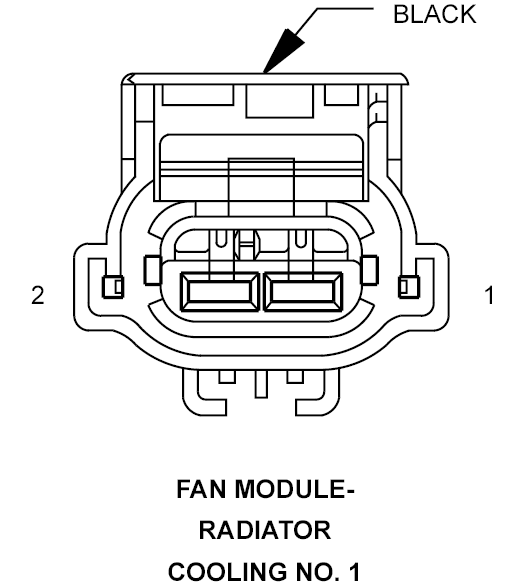

FAN MODULE-RADIATOR COOLING NO. 1 - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
N23 12DB/DG
RADIATOR FAN RELAY OUTPUT
2
Z823 12BK/DG
GROUND
Courtesy of CHRYSLER CORP.
