Integrated Power Module

For integrated power module location, see Fig 1.

Fig 1: Locating Integrated Power Module

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Integrated Power Module Components

Courtesy of CHRYSLER CORP.

INTEGRATED POWER MODULE COMPONENTS

FUSE NO.	AMPS	FUNCTION
1	40A	Anti-Lock Brake System Pump
2	-	-
3	30A	Ignition Off Draw
4	40A	Body Control Module Feed 1
5	40A	Electronic Brake Light
6	30A	Front Wipers
7	40A	Starter
8	40A	Power Seat C/B
9	40A	Power Sunroof
10	-	-
11	40A	Headlight Washer, Power Liftgate
12	-	-
13	40A	Radiator Fan 1
14	-	-
15	40A	Anti-Lock Brake System Module
24	20A	Power Outlet (Selectable)
25	15A	Radio, Amplifier, Navigation, Hands-Free Phone (HFM), Electronic Vehicle Information Center (EVIC), EC, SNRF, Mirror
26	20A	Power Outlet
27	-	-
28	25A	Horn
29	20A	Cluster, CHMSL, Stop Lights, Anti-Lock Brake System
30	10A	Ignition Switch
31	20A	Hazard
34	-	-
35	-	-
36	20A	Electronic Automatic Transaxle (EATX) Solenoid
37	25A	ASD
38	20A	Fuel Pump
39	20A	A/C Clutch, MTV
40	40A	Driver Door Node
41	40A	Passenger Door Node
42	40A	Front Blower
44	25A	Rear Heated Seats
45	10A	Anti-Lock Brake System, Ignition Run
46	20A	Passenger Door
47	20A	Driver Door
48	15A	PLG, OHC, Body Control Module, Navigation, Hands-Free Phone (HFM)
49	25A	Amplifier
50	15A	HVAC, DVD, RAD, CLK, SKREEM

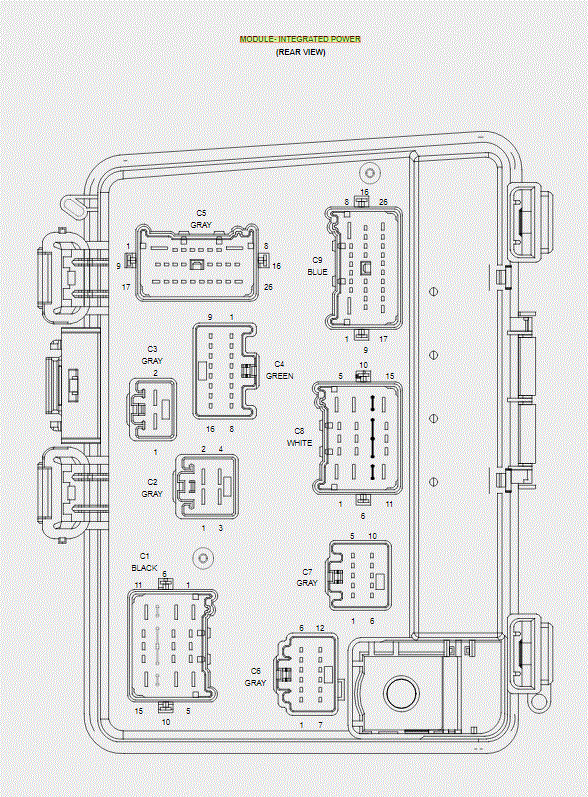

Fig 3: Integrated Power Module Connector Identification

Courtesy of CHRYSLER CORP.
