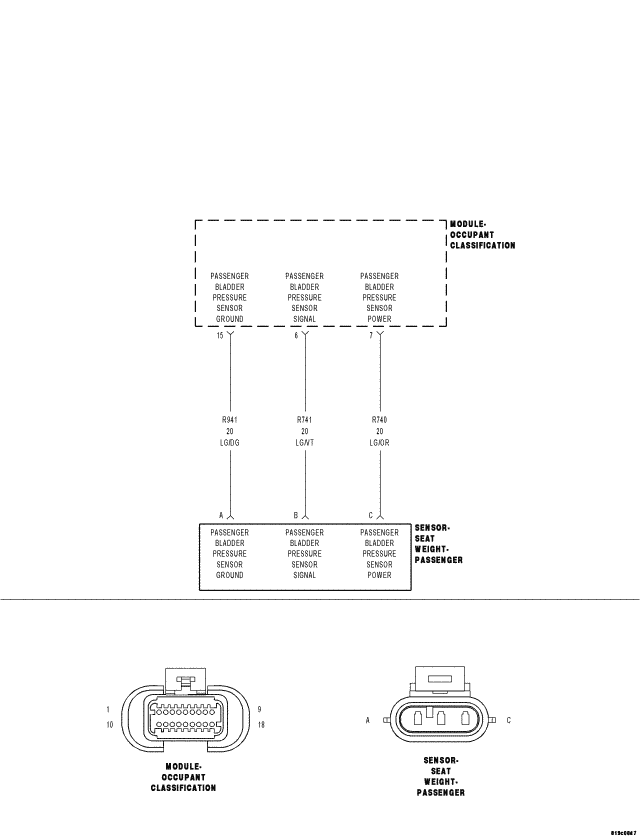

Home >> Chrysler >> 2007 >> Pacifica Base, 3.8 L >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> Restraints - Electrical Diagnostics >> Passenger Pressure Sensor Open >> Circuit Schematic
