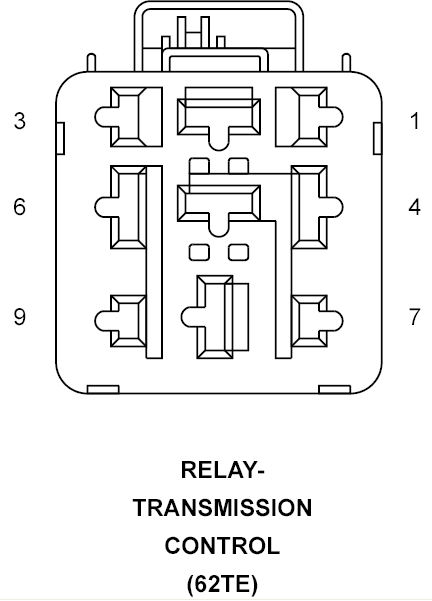

Transmission Control Relay (62TE) Connector End View
RELAY-TRANSMISSION CONTROL - 9-WAY (62TE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
T16 14YL/OR |
TRANSMISSION CONTROL OUTPUT |
| 3 |
- |
- |
| 4 |
T15 14YL/BR |
TRANSMISSION CONTROL |
| 5 |
- |
- |
| 6 |
Z115 18BK/OR |
GROUND |
| 7 |
- |
- |
| 8 |
A104 14YL/RD |
FUSED B(+) |
| 9 |
- |
- |
