Transfer Speed Sensor (62TE) Connector End View
Transfer Speed Sensor (62TE) Connector End View

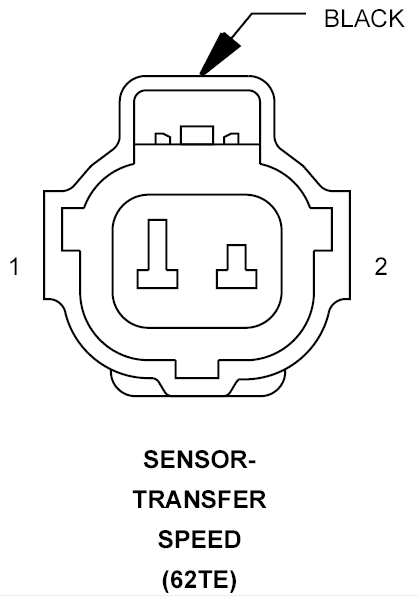

SENSOR-TRANSFER SPEED - BLACK 2-WAY (62TE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T85 18DG/LG
TRANSFER SPEED SIGNAL
2
T13 18DG/VT
SENSOR GROUND
Courtesy of CHRYSLER CORP.
