Right Front Fog Lamp Connector End View
Right Front Fog Lamp Connector End View

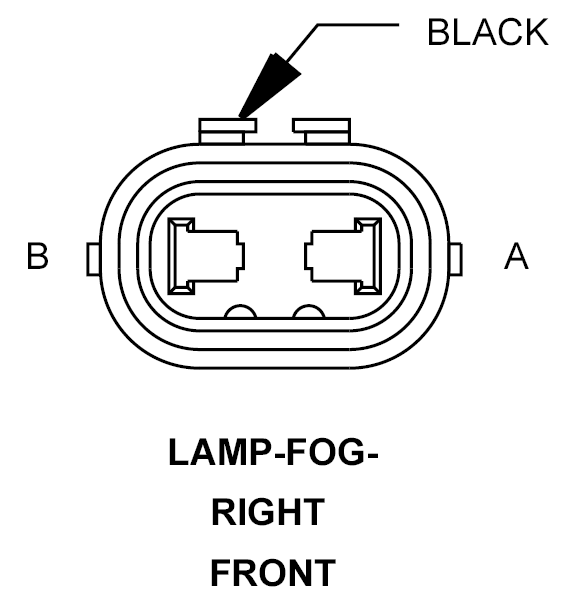

LAMP-FOG-RIGHT FRONT - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
L90 18WT/OR
RIGHT FRONT FOG LAMP DRIVER
B
Z348 18BK/OR
GROUND
Courtesy of CHRYSLER CORP.
