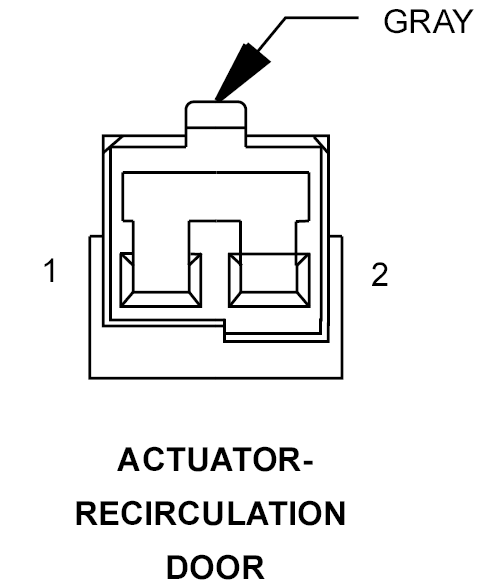

Recirculation Door Actuator Connector End View
ACTUATOR-RECIRCULATION DOOR - GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C32 20DB/TN |
RECIRCULATION DOOR DRIVER (A) |
| 2 |
C132 20DB/YL |
RECIRCULATION DOOR DRIVER (B) (ATC) |
| 2 |
C34 20DB/LB |
COMMON DOOR DRIVER (B) (MTC) |
