Rear Power Outlet Connector End View

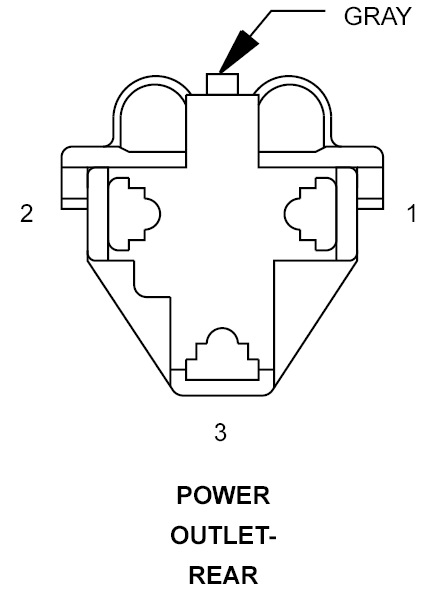

POWER OUTLET-REAR - GRAY 3-WAY

GCS780211Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F307 16LB/PK FUSED ACCESSORY RELAY OUTPUT
2 - -
3 Z737 16BK/LB GROUND
