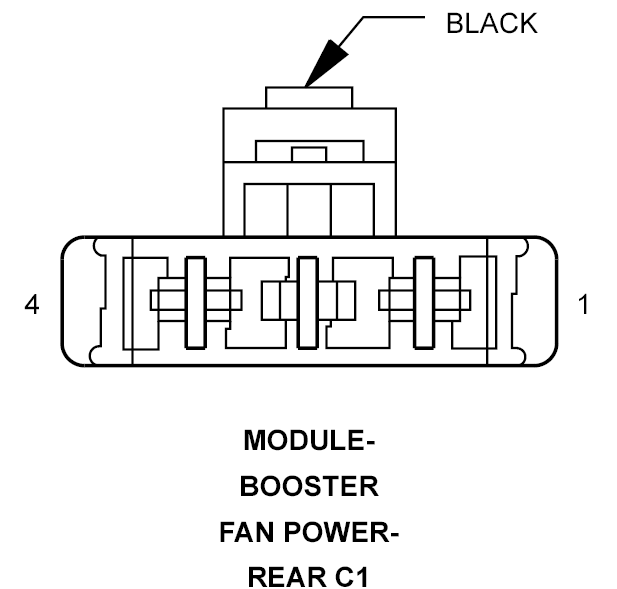

Rear Booster Fan Power Module Connector End View (C1)
MODULE-BOOSTER FAN POWER-REAR C1 - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Z135 18BK/LB |
GROUND |
| 3 |
C57 20DB/LB |
REAR BOOSTER FAN CONTROL |
| 4 |
C51 18LB/BR |
FUSED REAR BOOSTER FAN RELAY OUTPUT |
