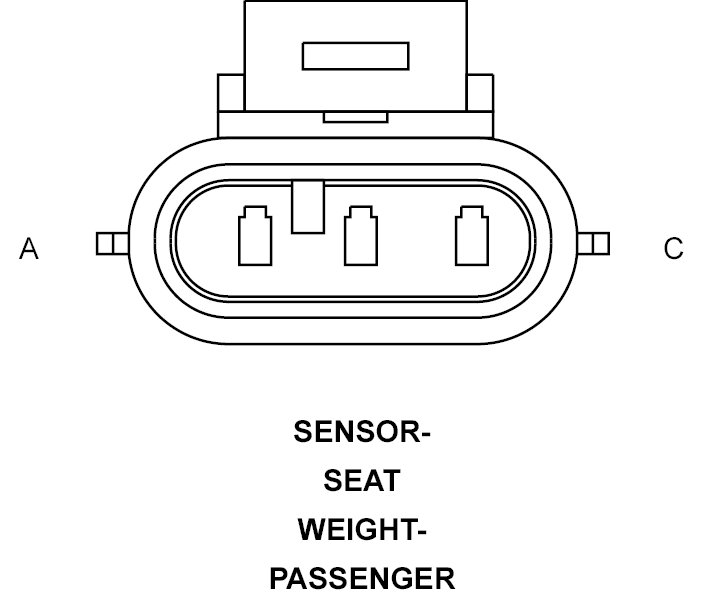

Passenger Seat Weight Sensor Connector End View
SENSOR-SEAT WEIGHT-PASSENGER - 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
R941 20LG/DG |
PASSENGER BLADDER PRESSURE SENSOR GROUND |
| B |
R741 20LG/VT |
PASSENGER BLADDER PRESSURE SENSOR SIGNAL |
| C |
R740 20LG/OR |
PASSENGER BLADDER PRESSURE SENSOR POWER |
