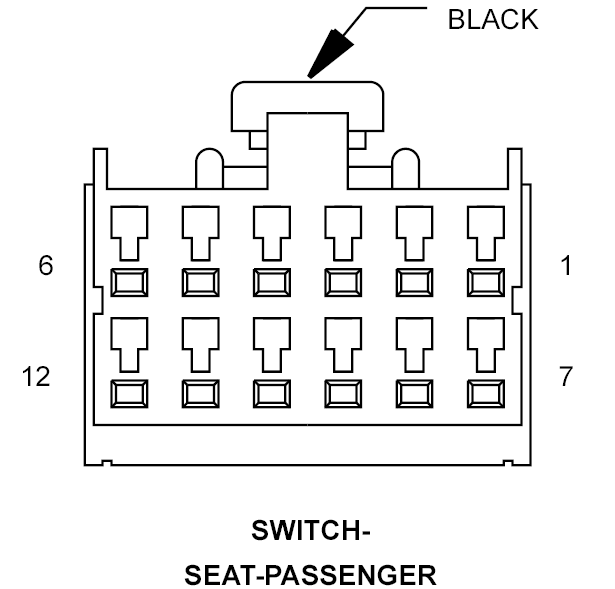

Passenger Seat Switch Connector End View
SWITCH-SEAT-PASSENGER - BLACK 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | P84 20TN/VT | PASSENGER HEATED SEAT HIGH INDICATOR DRIVER (FRONT ROW HEATED SEATS) |
| 3 | P82 20TN/DG | PASSENGER HEATED SEAT LOW INDICATOR DRIVER (FRONT ROW HEATED SEATS) |
| 4 | P988 20LG/TN | SEAT SWITCH MUX RETURN |
| 5 | Z302 20LG/BK | ILLUMINATION GROUND |
| 6 | P302 20TN/OR | PASSENGER DOOR SWITCH ILLUMINATION DRIVER |
| 7 | P308 20LG/VT | PASSENGER SEAT RECLINER SWITCH MUX |
| 8 | P310 20LG/OR | PASSENGER SEAT HORIZONTAL SWITCH MUX |
| 9 | - | - |
| 10 | P8 20LG/WT | PASSENGER HEATED SEAT SWITCH MUX (FRONT ROW HEATED SEATS) |
| 11 | - | - |
| 12 | - | - |
