Passenger Courtesy Lamp Connector End View

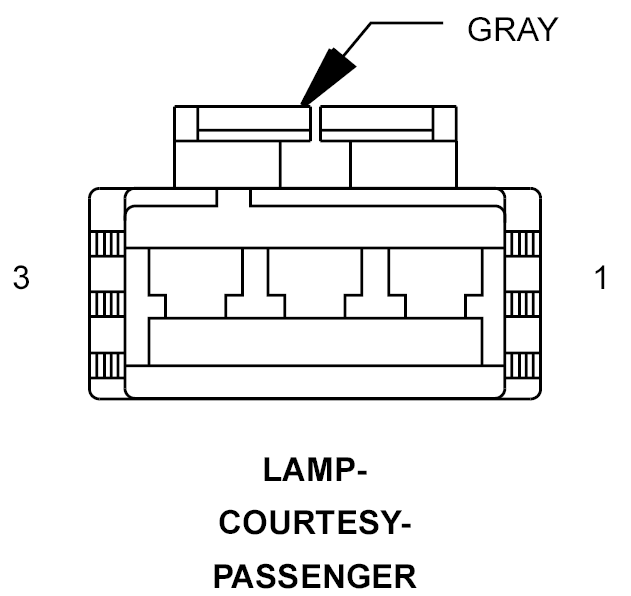

LAMP-COURTESY-PASSENGER - GRAY 3-WAY

GCS780100Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z322 20BK/BR GROUND
2 - -
3 M44 20OR/DB RIGHT DOOR COURTESY LAMP DRIVER
