Oxygen Sensor 1/1 Connector End View

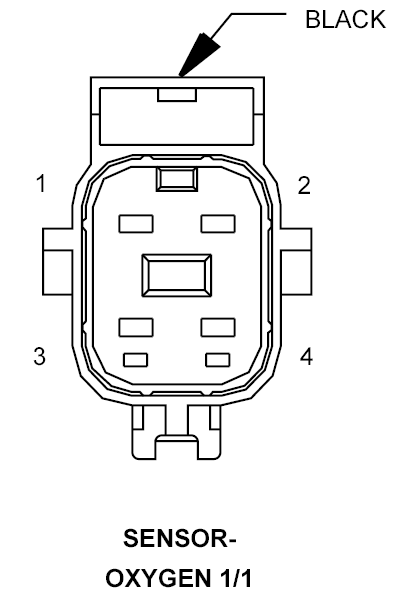

SENSOR-OXYGEN 1/1 - BLACK 4-WAY

GCS780194Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z42 18BK/LG GROUND
2 K99 18BR/TN O2 1/1 HEATER CONTROL
3 K902 18BR/DG O2 RETURN (UP)
4 K41 18DB/LB O2 1/1 SIGNAL
