Output Speed Sensor (40/41TE) Connector End View

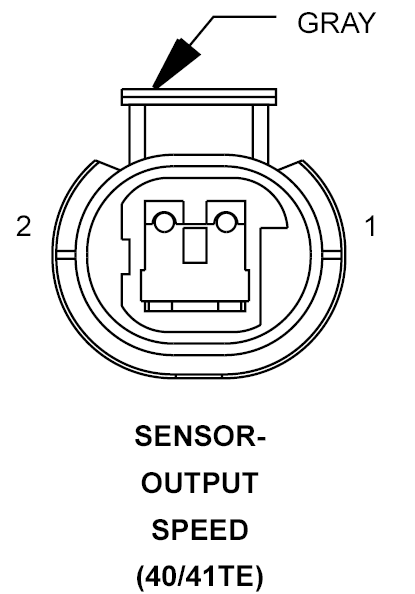

SENSOR-OUTPUT SPEED - GRAY 2-WAY (40/41TE)

GCS780278Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T13 18DG/VT SENSOR GROUND
2 T14 18DG/BR OUTPUT SPEED SIGNAL
