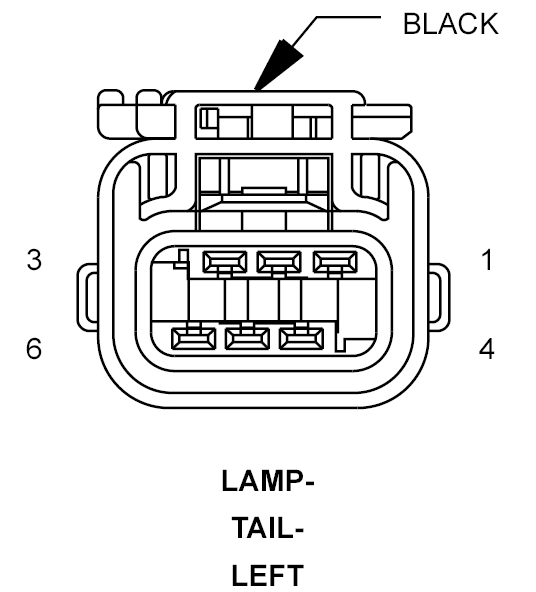

Left Tail Lamp Connector End View
LAMP-TAIL-LEFT - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L71 20WT/GY |
LEFT TAIL LAMP DRIVER |
| 2 |
L1 18WT/LG |
BACKUP LAMP DRIVER |
| 3 |
L71 20WT/GY |
LEFT TAIL LAMP DRIVER |
| 4 |
Z363 18BK/DG |
GROUND |
| 5 |
L51 18WT/DG |
BRAKE LAMP SWITCH OUTPUT |
| 6 |
L63 18DG/WT |
LEFT REAR TURN SIGNAL LAMP DRIVER |
