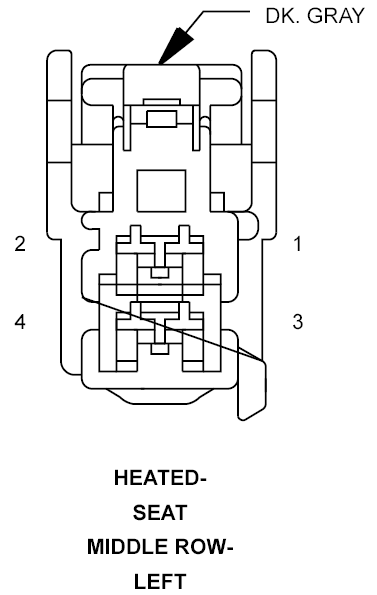

Left Middle Heated Row Seat Connector End View
HEATED-SEAT MIDDLE ROW-LEFT - DK. GRAY 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P187 16LG/BR |
LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER |
| 2 |
Z870 18BK/YL |
GROUND |
| 3 |
P189 20LG/WT |
MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY |
| 4 |
P197 20LG/DG |
LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT |
