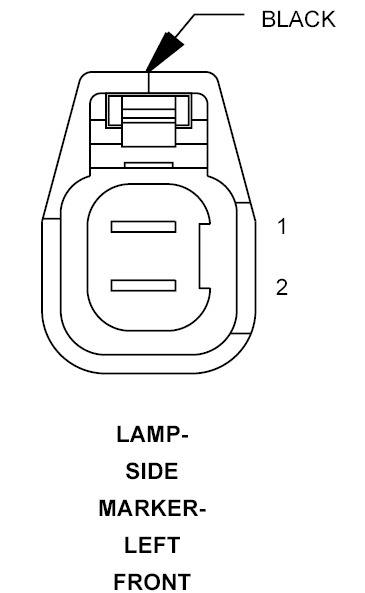

Left Front Side Marker Lamp Connector End View
Left Front Side Marker Lamp Connector End View
LAMP-SIDE MARKER-LEFT FRONT - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L77 20WT/BR
LEFT FRONT SIDE MARKER LAMP DRIVER
2
Z377 20BK/BR
GROUND
