Horn Relay Connector End View

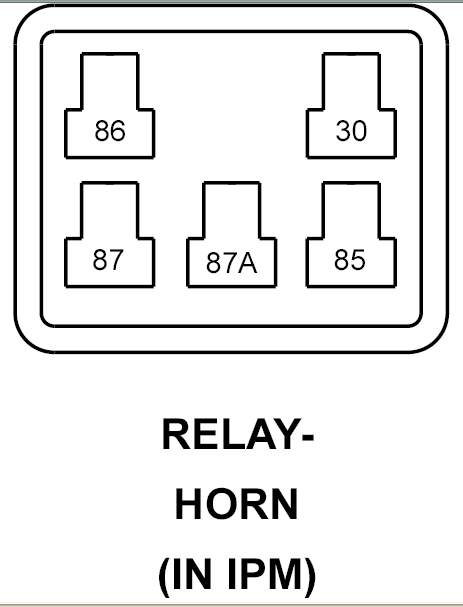

RELAY-HORN

GCS710010Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL HORN RELAY CONTROL
87 X2 16DG/OR HORN RELAY OUTPUT
87A - -
