High Mounted Stop Lamp Connector End View
High Mounted Stop Lamp Connector End View

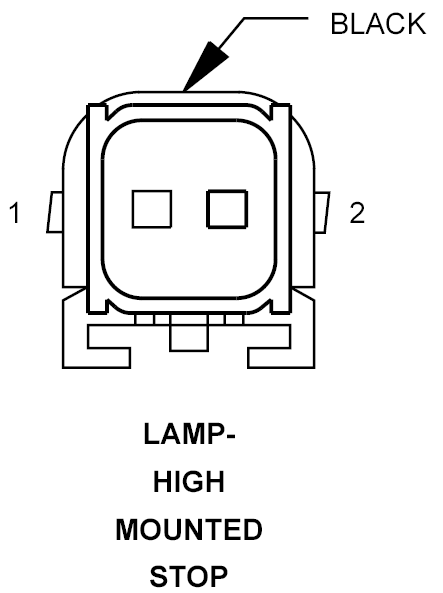

LAMP-HIGH MOUNTED STOP - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L51 18WT/DG
BRAKE LAMP SWITCH OUTPUT
2
Z350 20BK/TN
GROUND
Courtesy of CHRYSLER CORP.
