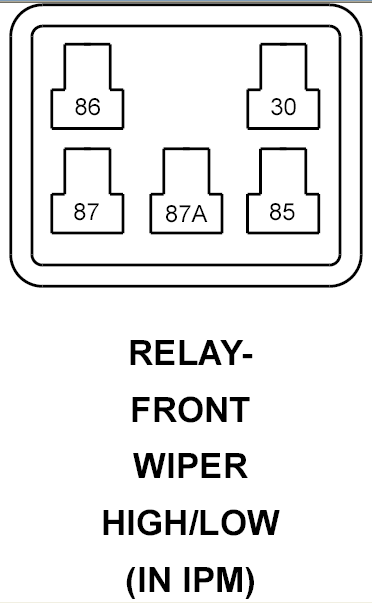

Front Wiper High/Low Relay Connector End View
RELAY-FRONT WIPER HIGH/LOW
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED B(+) |
| 85 |
INTERNAL |
FUSED B(+) |
| 86 |
INTERNAL |
FRONT WIPER HIGH/LOW RELAY CONTROL |
| 87 |
W4 12BR/OR |
FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 87A |
W3 12BR/WT |
FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
