Driver Seat Belt Switch Connector End View
Driver Seat Belt Switch Connector End View

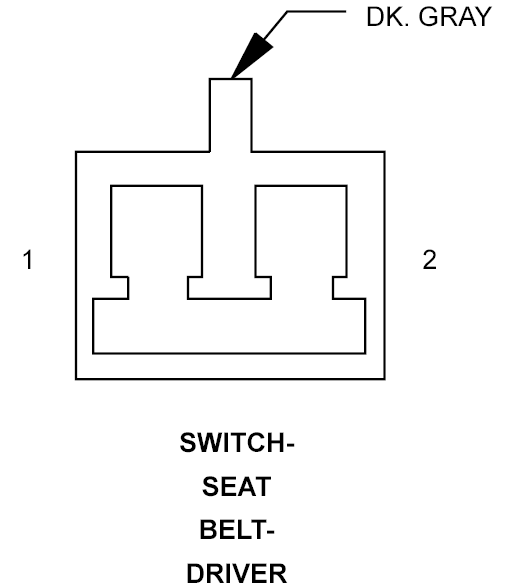

SWITCH-SEAT BELT-DRIVER - DK. GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G10 20VT/LG
DRIVER SEAT BELT SWITCH SENSE
2
Z237 20BK/YL
GROUND
Courtesy of CHRYSLER CORP.
