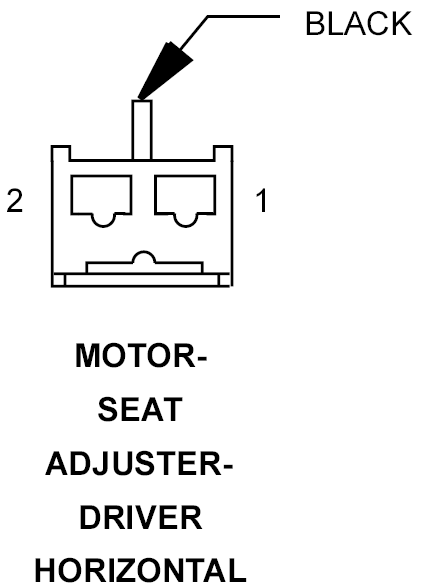

Driver Seat Adjuster Horizontal Motor Connector End View
MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P117 14LG/LB |
DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 2 |
P115 14LG/OR |
DRIVER SEAT HORIZONTAL FORWARD DRIVER |
