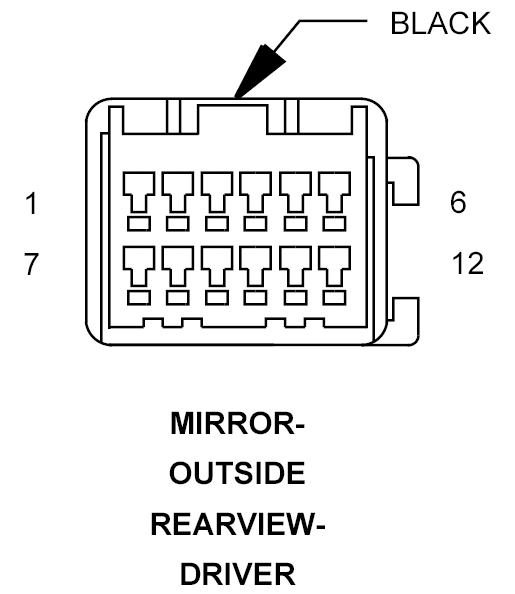

Driver Outside Rearview Mirror Connector End View
MIRROR-OUTSIDE REARVIEW-DRIVER - BLACK 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P67 22OR/TN | DRIVER MIRROR VERTICAL POSITION SIGNAL |
| 2 | P69 22WT/TN | DRIVER MIRROR SENSOR GROUND |
| 3 | P65 22VT/TN | DRIVER MIRROR HORIZONTAL POSITION SIGNAL |
| 4 | P73 22TN/VT | DRIVER MIRROR COMMON DRIVER |
| 5 | P75 22TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 6 | P71 22TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 7 | - | - |
| 8 | P669 22OR/LG | DRIVER MIRROR SENSOR SUPPLY |
| 9 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) |
| 10 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) |
| 11 | P53 20LG/OR | DRIVER HEATED MIRROR DRIVER |
| 12 | C17 20LB/WT | DRIVER HEATED MIRROR FEED |
