Driver Knee Blocker Airbag Connector End View

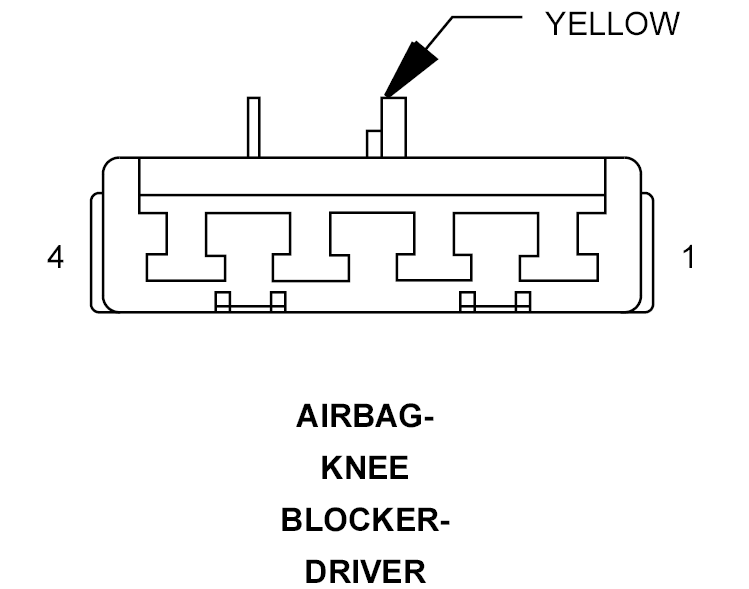

AIRBAG-KNEE BLOCKER-DRIVER - YELLOW 4-WAY

GCS780009Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 R9 18LB/YL DRIVER KNEE BLOCKER SQUIB LINE 2
4 R11 18DB/LB DRIVER KNEE BLOCKER SQUIB LINE 1
