Belt Tension Sensor Connector End View

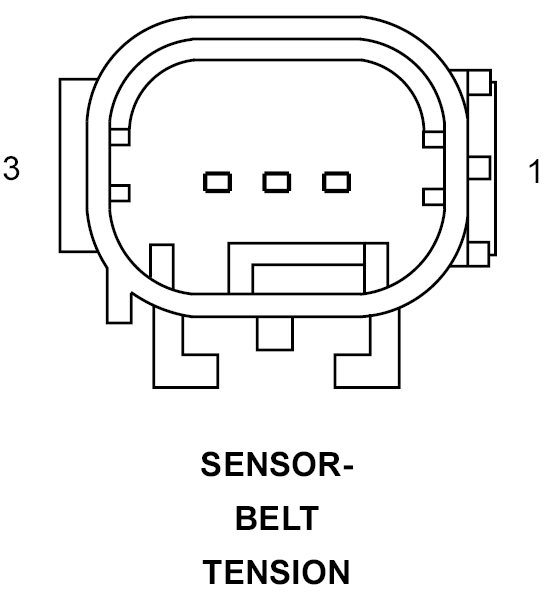

SENSOR-BELT TENSION - 3-WAY

GCS780021Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R86 20LG/LB BELT TENSION SENSOR POWER
2 R986 20LG/BR BELT TENSION SENSOR GROUND
3 R105 20WT/OR BELT TENSION SENSOR SIGNAL
