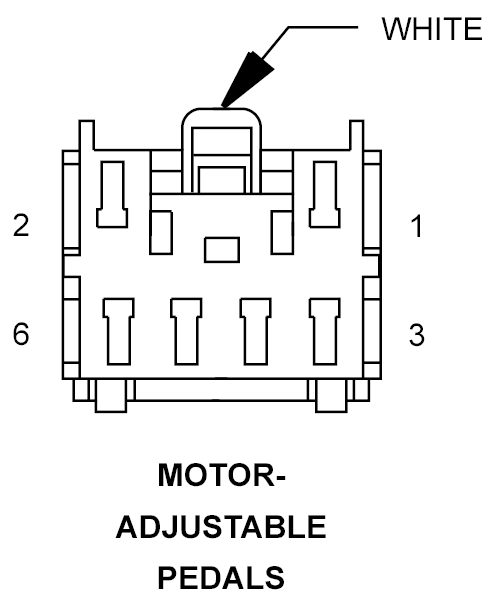

Adjustable Pedals Motor Connector End View

MOTOR-ADJUSTABLE PEDALS - WHITE 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P205 14LG/DB	ADJUSTABLE PEDALS MOTOR FORWARD
2	P206 14LG/TN	ADJUSTABLE PEDALS MOTOR REVERSE
3	-	-
4	-	-
5	-	-
6	-	-
