A/C Pressure Transducer Connector End View

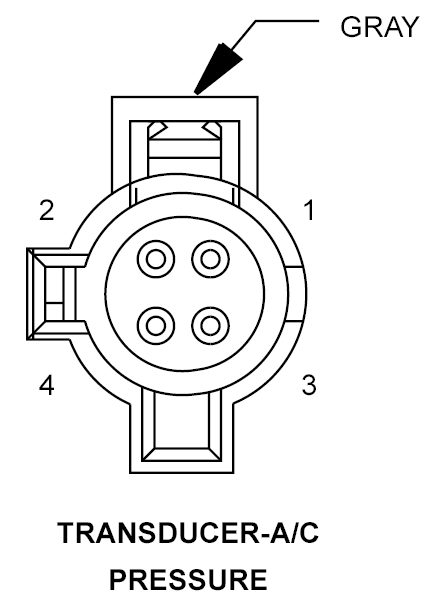

TRANSDUCER-A/C PRESSURE - GRAY 4-WAY

GCS780002Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C918 20BK/LB SENSOR GROUND
2 C818 20LB/OR A/C PRESSURE SENSOR SUPPLY
3 C18 20LB/BR A/C PRESSURE TRANSDUCER SIGNAL
4 - -
