Sensor-Intake Air Temperature - 4.0L

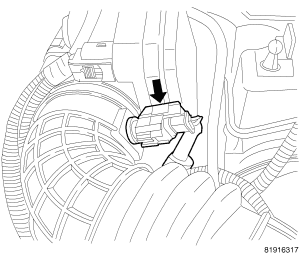

Fig 1: Inlet Sensor 4.0L
GC0049844Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Unlock and disconnect the electrical connector.
  3. Remove sensor from hose.
