Sensor-Inlet Temperature - 3.8L

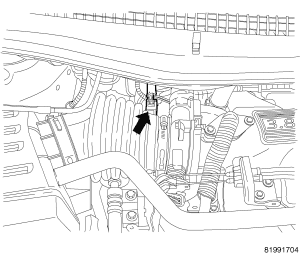

Fig 1: Inlet Sensor 3.8L
GC0049843Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Unlock and disconnect the electrical connector.
  3. Remove sensor from hose.
