Torque Strut

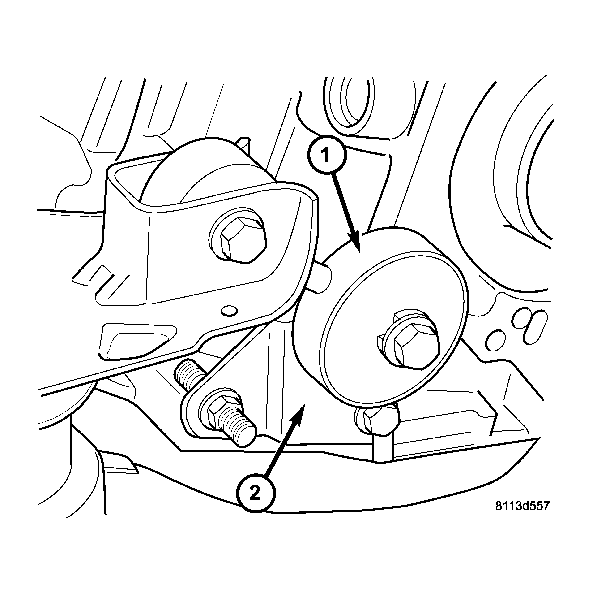

Fig 1: Powertrain Torque Strut
GC0000561Courtesy of CHRYSLER LLC
1 - STRUT
2 - BRACKET
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Support the transmission with a floor jack.
  4. Remove the torque strut. See Fig 1.
