Upper Engine Mount

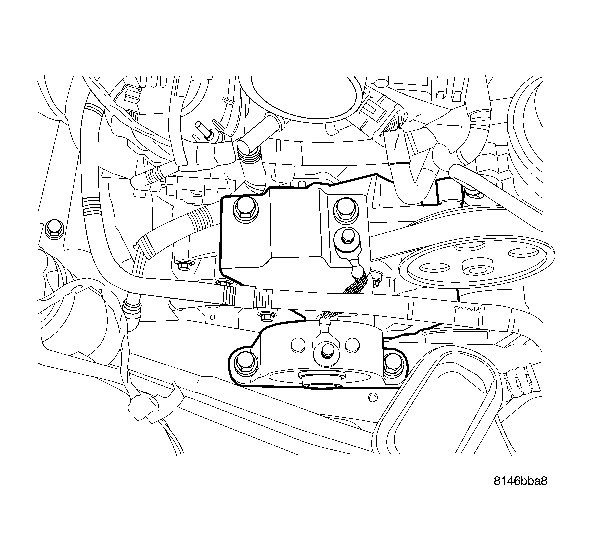

Fig 1: Upper Engine Mount
GC0002171Courtesy of CHRYSLER LLC
  1. Remove air cleaner housing.
  2. Remove the load on the upper engine mount by carefully supporting the engine assembly with a floor jack.
  3. Remove the bolts attaching the engine mount to the frame rail. See Fig 1.
  4. Remove the bolts attaching the engine mount to the engine bracket. See Fig 1.
  5. Remove the upper engine mount. See Fig 1.
