Right Mount

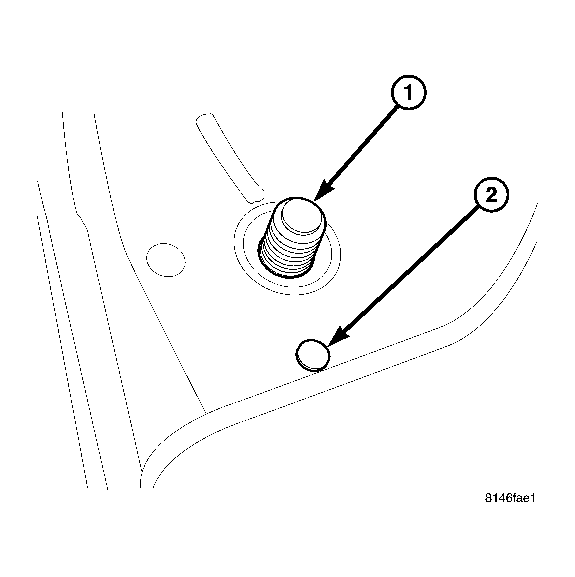

Fig 1: Engine Mount to Bracket Alignment
GC0002173Courtesy of CHRYSLER LLC
1 - ENGINE MOUNT STUD
2 - ALIGNMENT HOLE
  1. Align and Install mount bracket, if removed. Tighten top engine mount fastener to 101 N.m (75 ft.lbs.). See Fig 1.

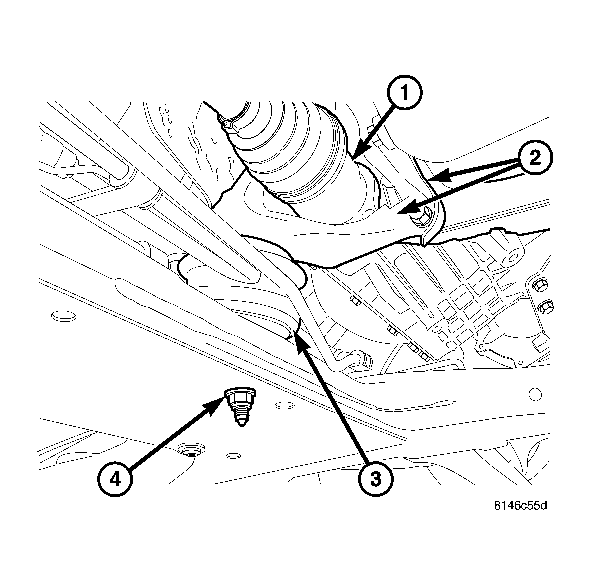

    Fig 2: Right Engine Mount
    GC0002175Courtesy of CHRYSLER LLC
    1 - DRIVE AXLE
    2 - BRACKET
    3 - ENGINE MOUNT
  2. Install the right mount, bracket and bolts. See Fig 2. Tighten bolts to 101 N.m (75 ft. lbs.).
  3. Lower the engine and remove the jack stand.
  4. Install the engine mount to cradle fastener. See Fig 1. Tighten both engine mount to cradle fasteners to 101 N.m (75 ft. lbs.).

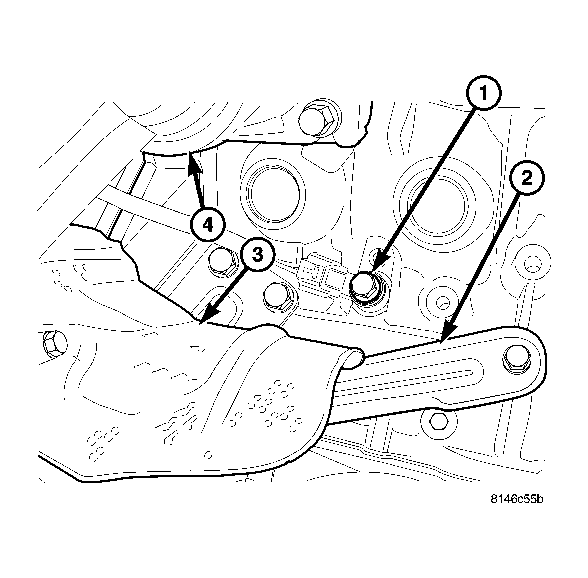

    Fig 3: Right Engine Mount Heat Shield
    GC0002174Courtesy of CHRYSLER LLC
    1 - CRANKSHAFT SENSOR
    2 - BRACKET
    3 - HEAT SHIELD
    4 - EXHAUST
  5. Install the right mount heat shield. See Fig 3.
