Left Mount

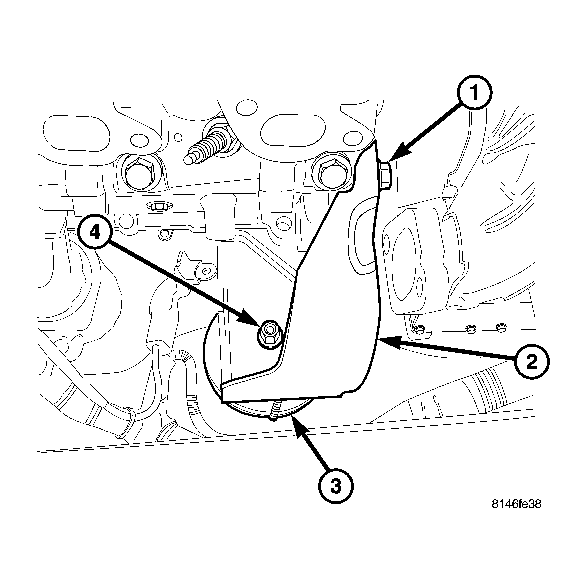

Fig 1: Left Engine Mount & Bracket
GC0002172Courtesy of CHRYSLER LLC
1 - UPPER ENGINE MOUNT BRACKET FASTENER
2 - ENGINE MOUNT BRACKET
3 - ENGINE MOUNT
4 - ENGINE MOUNT FASTENER
  1. Disconnect the negative battery cable.
  2. Remove the cruise control servo and position servo aside.
  3. Remove the radiator fan assembly. Refer to REMOVAL .
  4. Remove the left exhaust manifold. See REMOVAL .
  5. Remove the starter. Refer to REMOVAL .
  6. Raise and support the vehicle.
  7. Remove the lower engine bracket mount fasteners from the engine.
  8. Remove the engine mount to cradle fastener.
  9. Lower the vehicle.
  10. Support the engine with a floor jack.
  11. Remove the upper engine mount bracket to engine block fasteners and remove engine mount. See Fig 1.
  12. Separate the engine mount from the bracket.
