Flex Plate

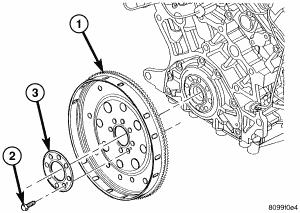

Fig 1: Flex Plate, Bolt And Backing Plate
GC0061126Courtesy of CHRYSLER LLC
1 - FLEX PLATE
2 - BOLT (QTY. 8)
3 - BACKING PLATE
  1. Position flex plate with backing plate (3) on the crankshaft.
  2. Apply Mopar® Lock & Seal Adhesive to the flex plate bolts (2).
  3. Install flex plate bolts (2). Tighten bolts to 95 N.m (70 ft. lbs.).
  4. Install the transmission. Refer to INSTALLATION .
