Pump-Power Steering, 1.6L

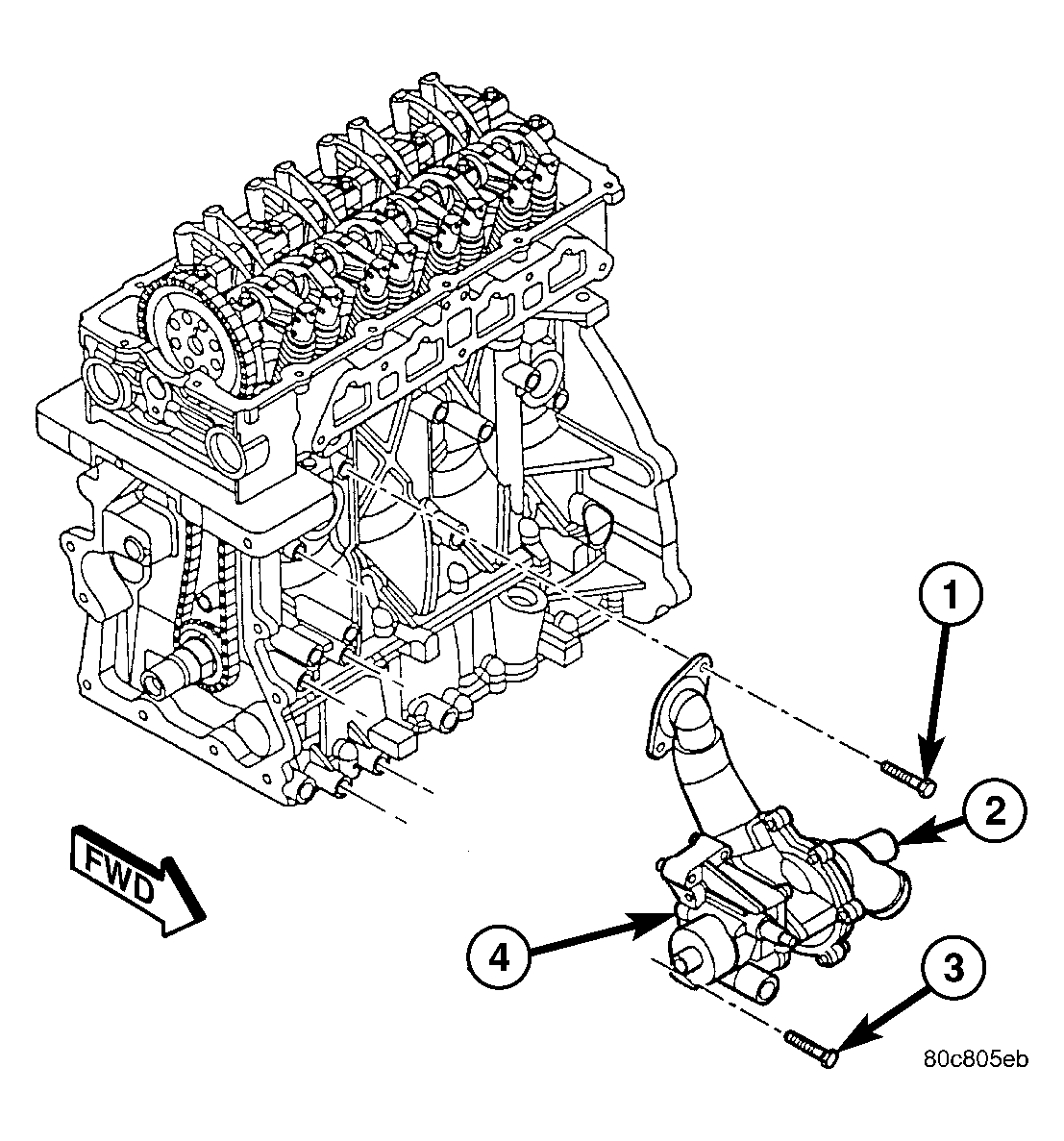

Fig 1: View Of Power Steering Pump/Water Pump Assembly - 1.6L Engine

Courtesy of CHRYSLER LLC

1 - OUTLET HOSE CONNECTOR FITTING BOLT (2)

2 - WATER PUMP

3 - POWER STEERING PUMP MOUNTING BOLT (4)

4 - POWER STEERING PUMP

Hydraulic pressure for operation of the power steering gear is provided by a constant flow rate and displacement vane-type power steering pump. The pump (4) is located on the front corner of the engine. It is attached to the engine water (coolant) pump (2) to form an assembly.

The power steering pump is belt driven. Its pulley driven shaft traverses the length of the pump, exiting the rear, driving the engine water pump that is attached to the rear of the pump.

Both pumps can be serviced separately. The entire power steering pump/water pump assembly must be removed as an assembly, then disassembled to service either pump. No repair procedures are to be done on the internal components of the power steering pump itself. The pulley may be serviced separately.
