Input Speed Sensor

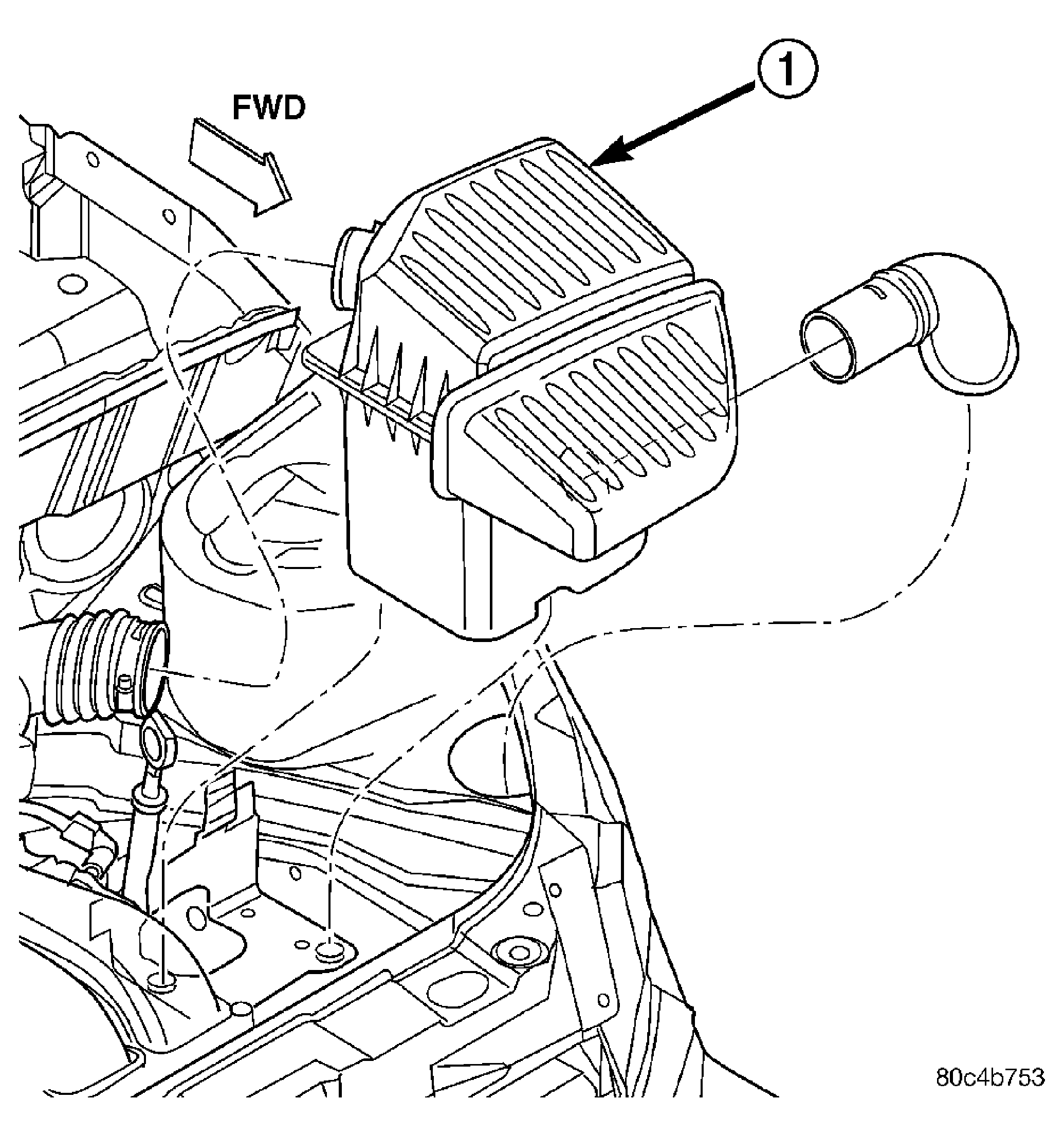

Fig 1: Removing/Installing Air Cleaner Assembly

Courtesy of CHRYSLER LLC

1 - AIR CLEANER ASSEMBLY

CAUTION: When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.

Disconnect the battery cables.
Remove air cleaner assembly (1). See Fig 1.

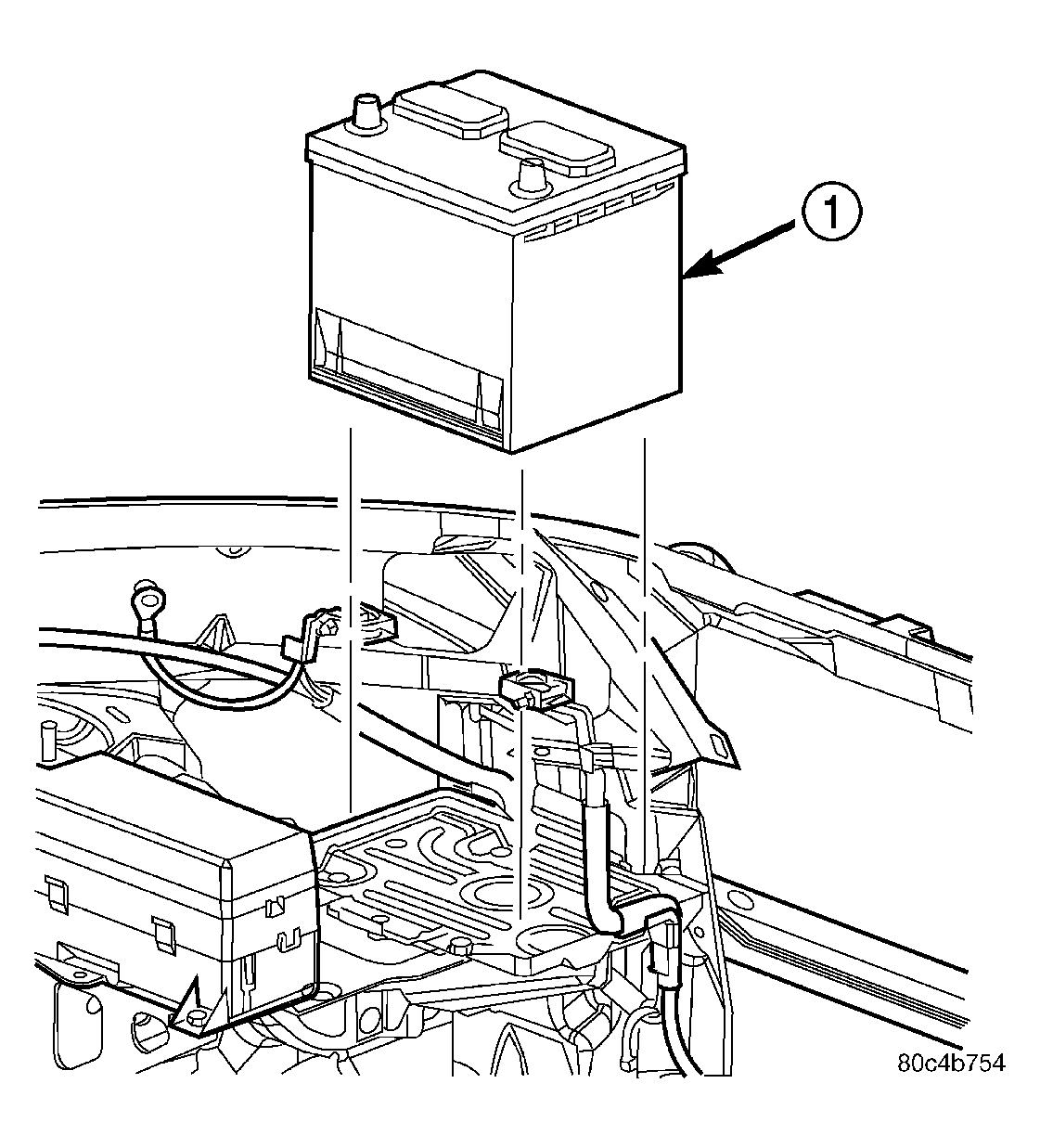

Fig 2: Removing/Installing Battery
Courtesy of CHRYSLER LLC

1 - BATTERY
Remove the battery hold down clamp and remove the battery (1). See Fig 2.

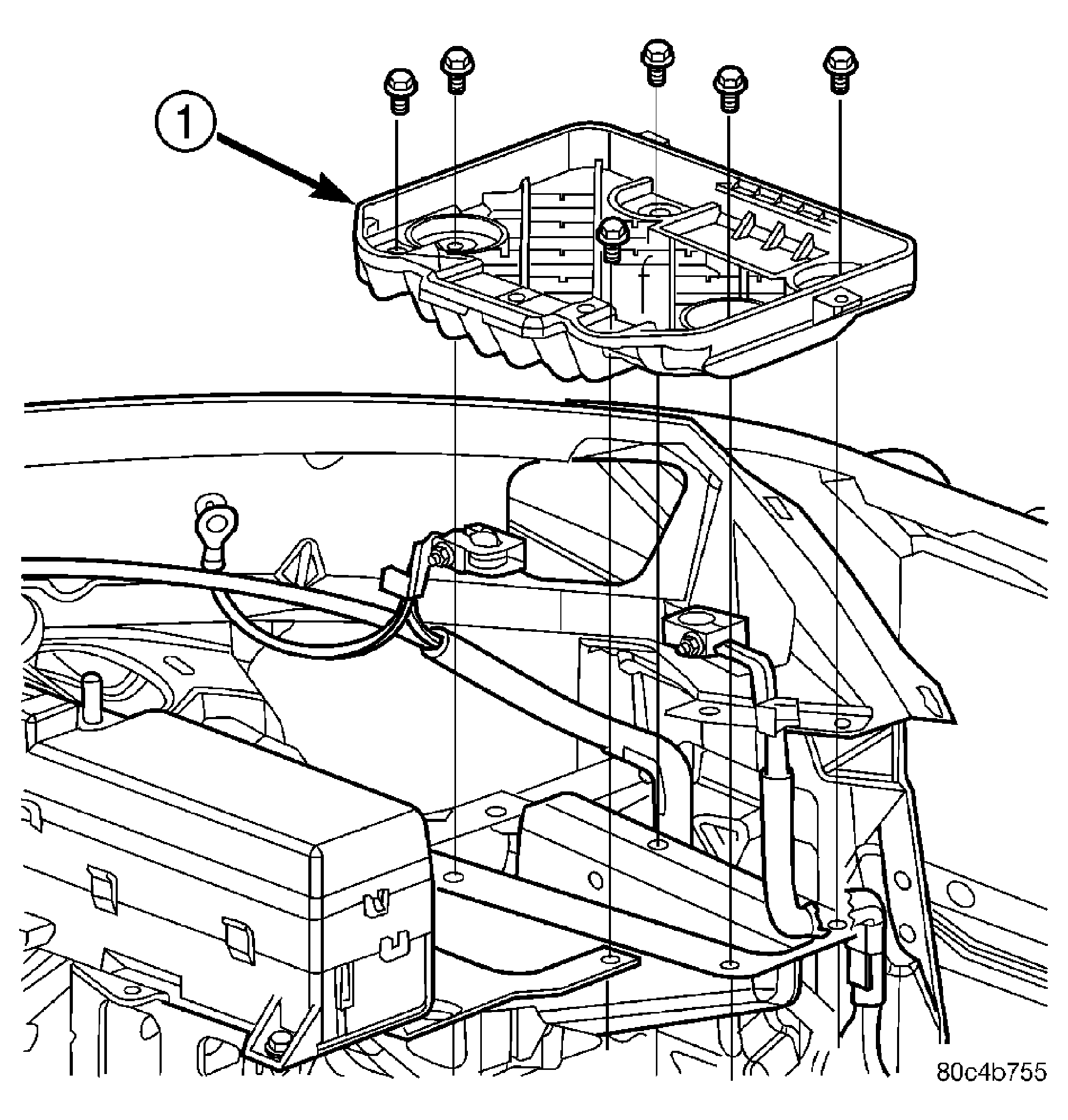

Fig 3: Removing/Installing Battery Tray
Courtesy of CHRYSLER LLC
Remove the battery tray (1). See Fig 3.

Fig 4: Identifying Input Speed Sensor Location
Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR
Disconnect input speed sensor connector.
Unscrew and remove input speed sensor (1). See Fig 4.

Fig 5: Identifying O-Ring Location
Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - O-RING
Inspect speed sensor o-ring (2) and replace if necessary. See Fig 5.
