Installation-2.2L Diesel Engine

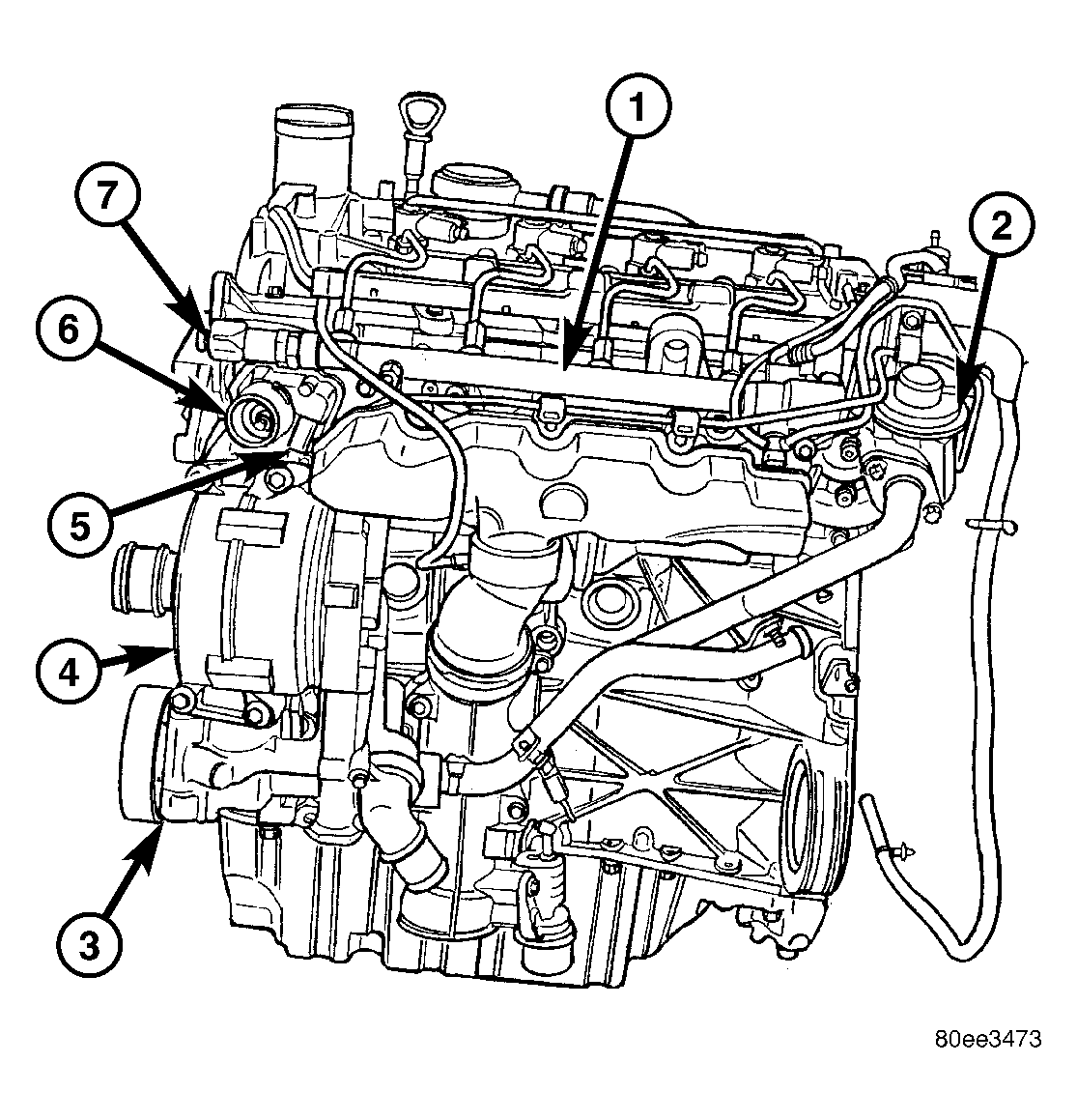

Fig 1: Thermostat And Sensor

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - EGR VALVE

3 - POWER STEERING PUMP

4 - GENERATOR

5 - COOLANT TEMPERATURE SENSOR

6 - THERMOSTAT HOUSING

7 - FUEL RAIL PRESSURE SENSOR

Position and install coolant temperature sensor (5)
Connect coolant temperature sensor (5) electrical connector.

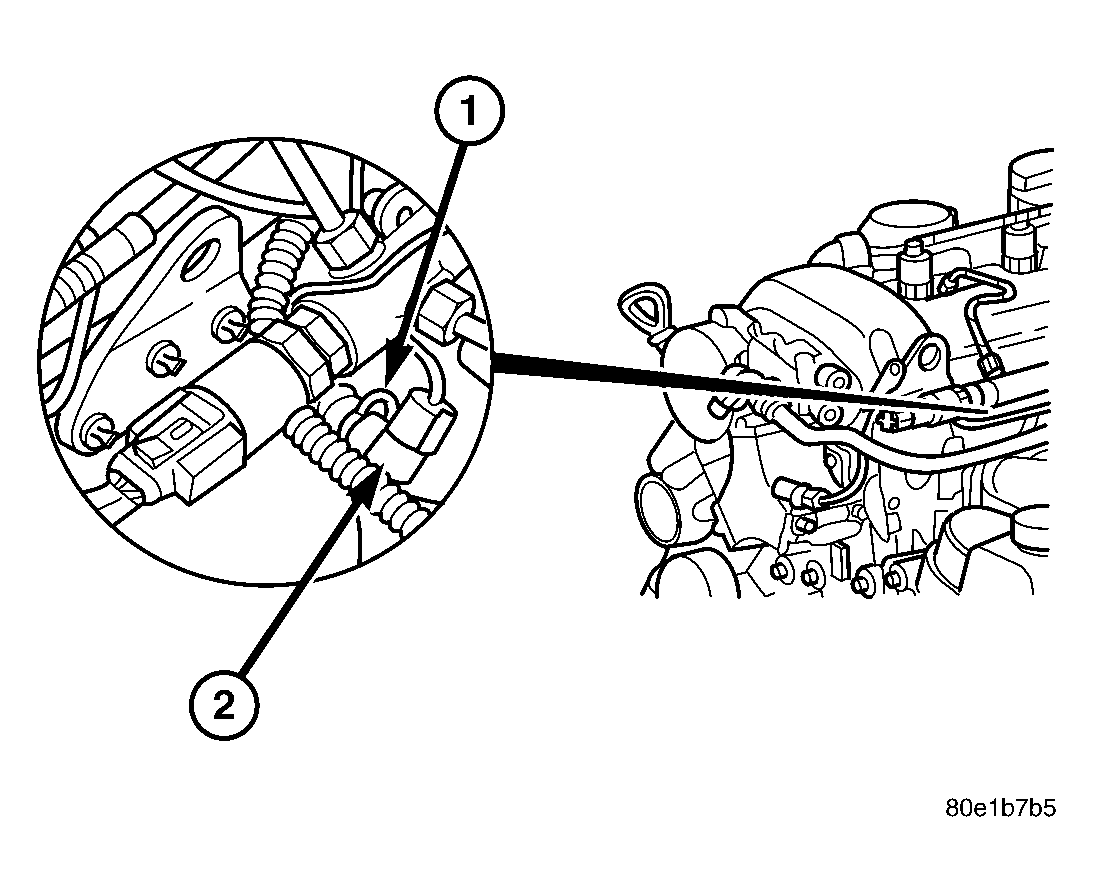

Fig 2: Engine Coolant Temperature Sensor
Courtesy of CHRYSLER LLC

1 - RETAINING CLAMP

2 - ENGINE COOLANT TEMPERATURE SENSOR
Refill coolant system to proper level with proper mixture of coolant. See STANDARD PROCEDURE .
Install engine cover.
Connect negative battery cable.
WARNING: Use extreme caution when engine is operating. Do not stand in a direct line with fan. Do not put your hands near pulleys, belts or fan. Do not wear loose clothes.
Start engine and inspect for leaks.
