Sensor-Engine Coolant Temp: Installation: Installation-1.6L

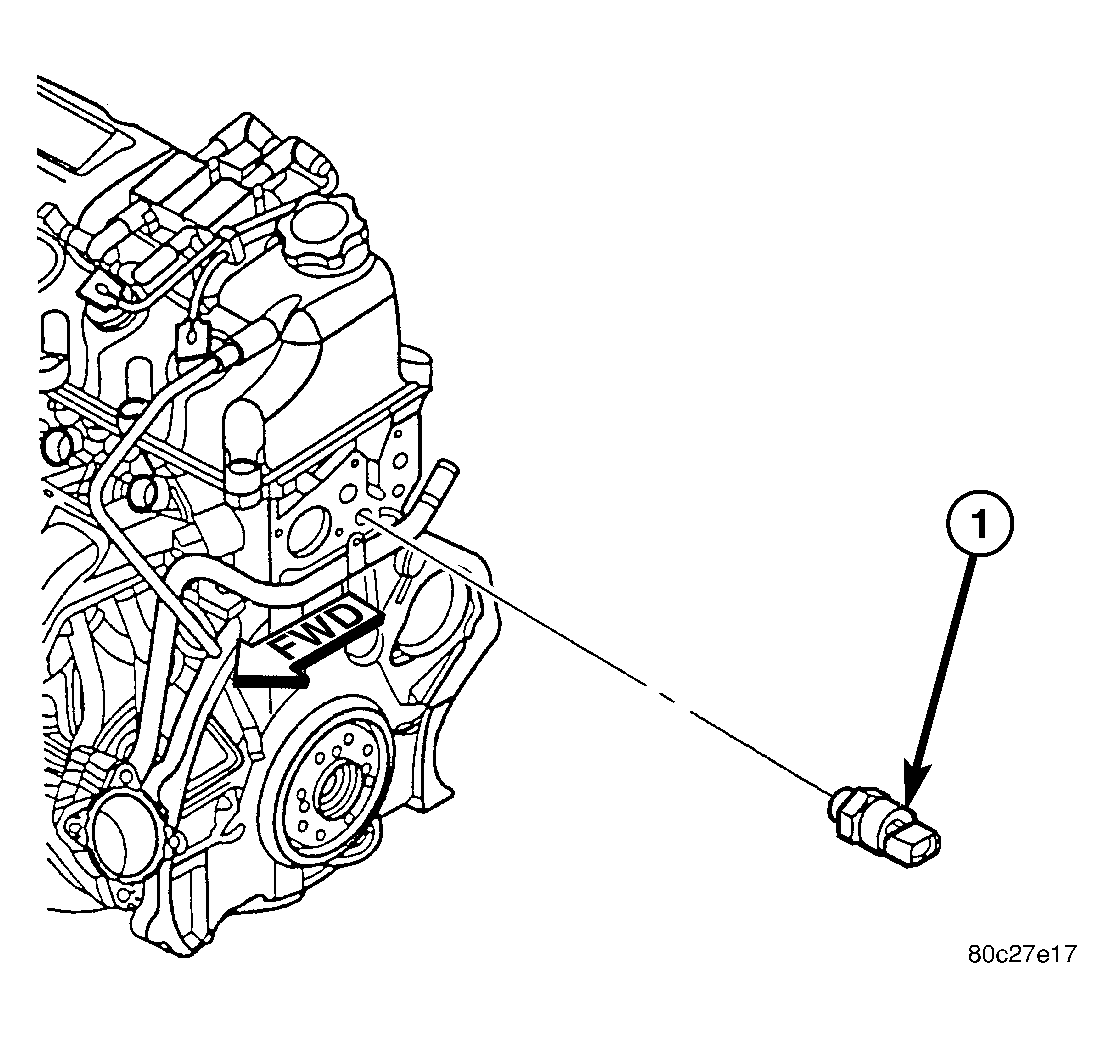

Fig 1: Engine Coolant Temperature Sensor

Courtesy of CHRYSLER LLC

1 - ENGINE COOLANT TEMPERATURE SENSOR

1. Install engine coolant temperature sensor (1). Tighten sensor to 17 N.m (150 in. lbs.).
2. Reconnect coolant temperature sensor connector.
3. Install battery.
4. Connect positive battery cable.
5. Connect negative battery cable.
6. Fill cooling system, refer to STANDARD PROCEDURE .
