Engine & Automatic Transmission Cooling System: Engine: Fan-Radiator: Installation: Installation-1.6L

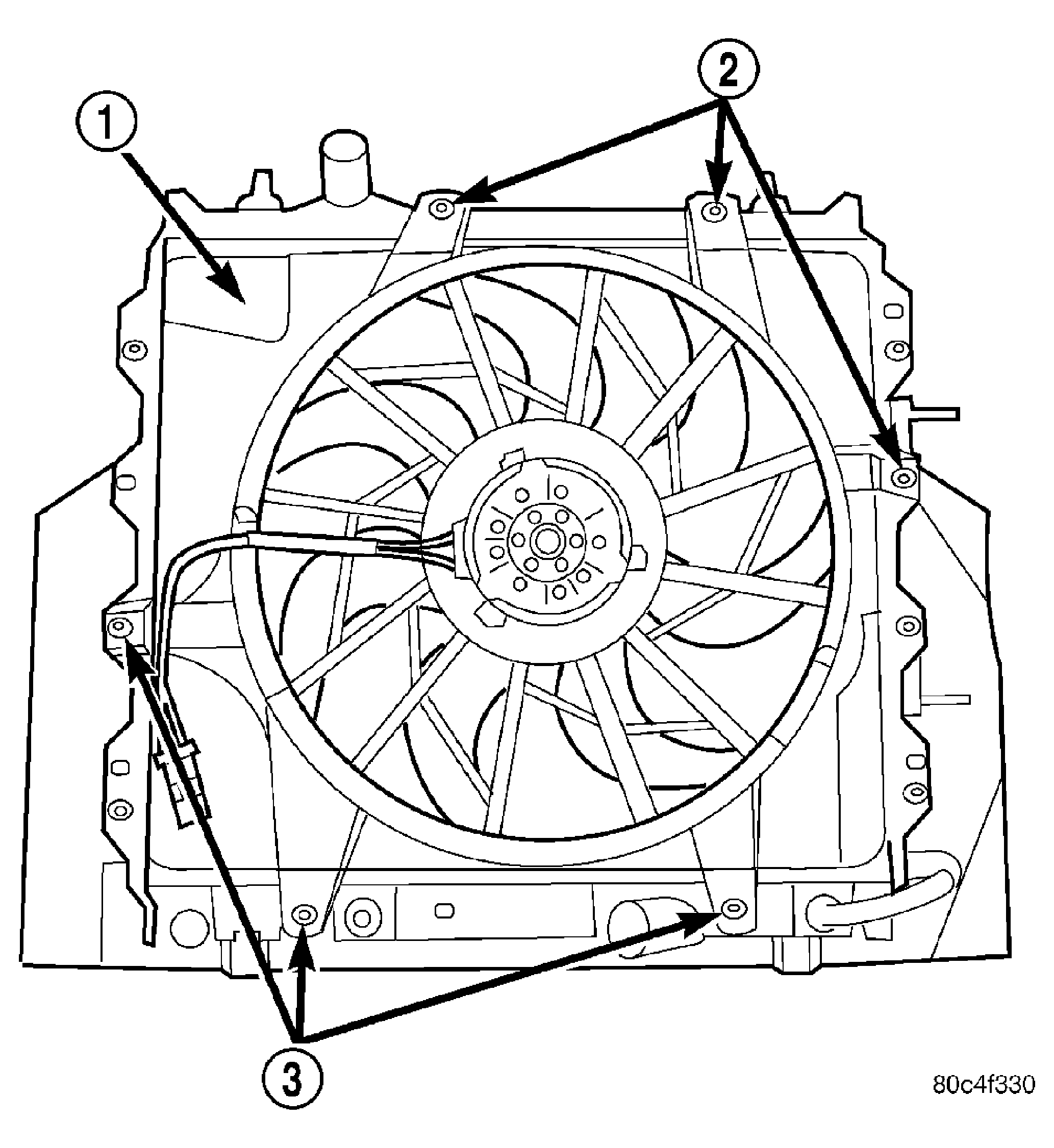

Fig 1: Radiator Fan - Mounting

Courtesy of CHRYSLER LLC

1 - RADIATOR FAN SHROUD

2 - SCREWS

3 - SCREWS

1. Install the radiator fan into position on the radiator.
2. Install the upper and right side radiator fan retaining screws (2) and tighten to 6 N.m (55 in. lbs.).
3. Raise vehicle and install the remaining fan attaching screws (3). Tighten to 6 N.m (55 in. lbs.).

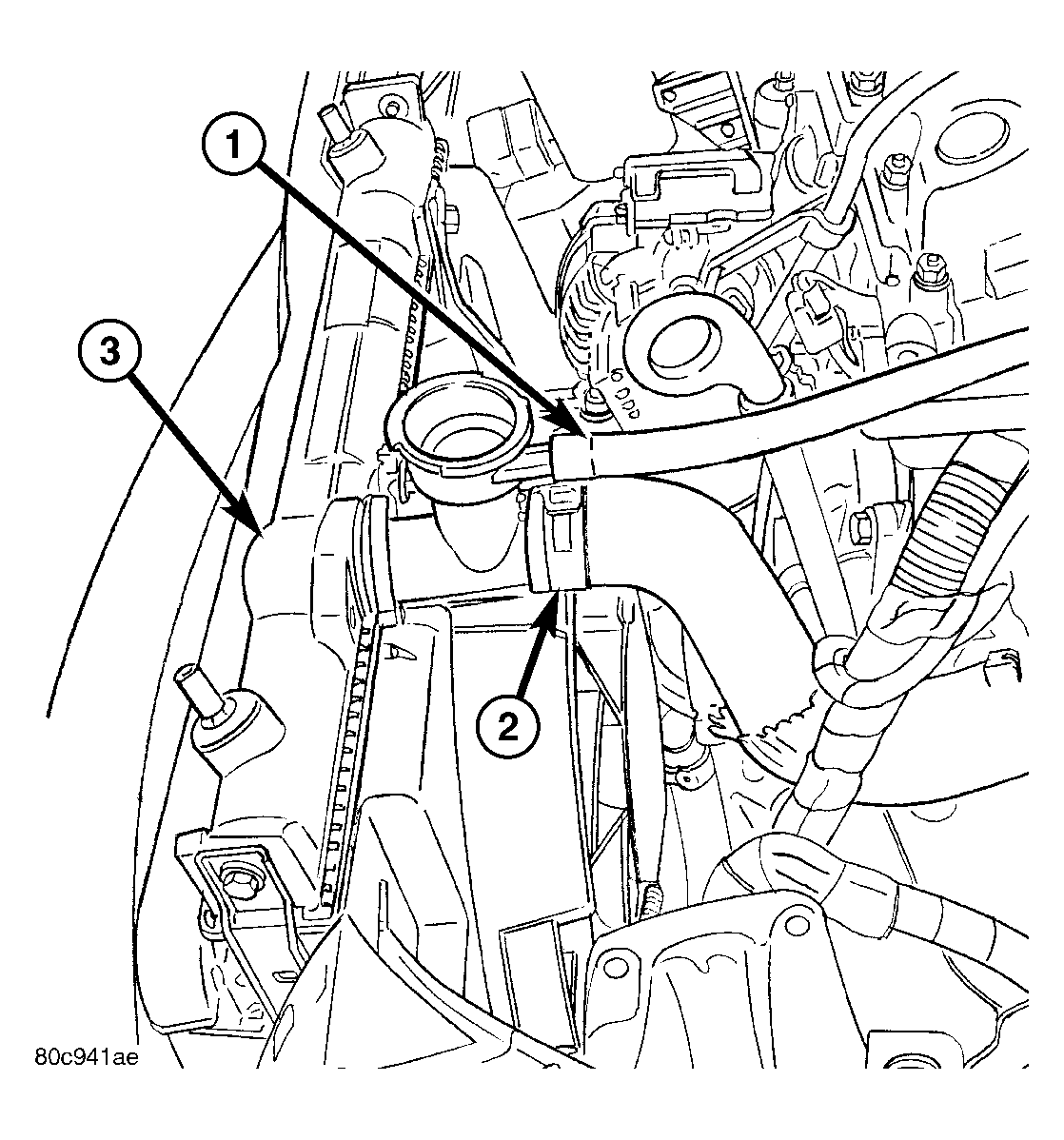

   Fig 2: Radiator Assembly

   Courtesy of CHRYSLER LLC

   1 - OVERFLOW HOSE

   2 - UPPER RADIATOR HOSE

   3 - RADIATOR ASSEMBLY

4. Connect radiator fan electrical connector.
5. Lower vehicle.
6. Install radiator filler neck to radiator. Connect upper radiator hose (2) and overflow hose (1) to radiator filler neck.
7. Install upper radiator support and closure panel. Refer to INSTALLATION .
8. Install grille. Refer to INSTALLATION .
9. Connect negative battery cable.
10. Fill the cooling system, refer to STANDARD PROCEDURE .
