Description-Gas Engines

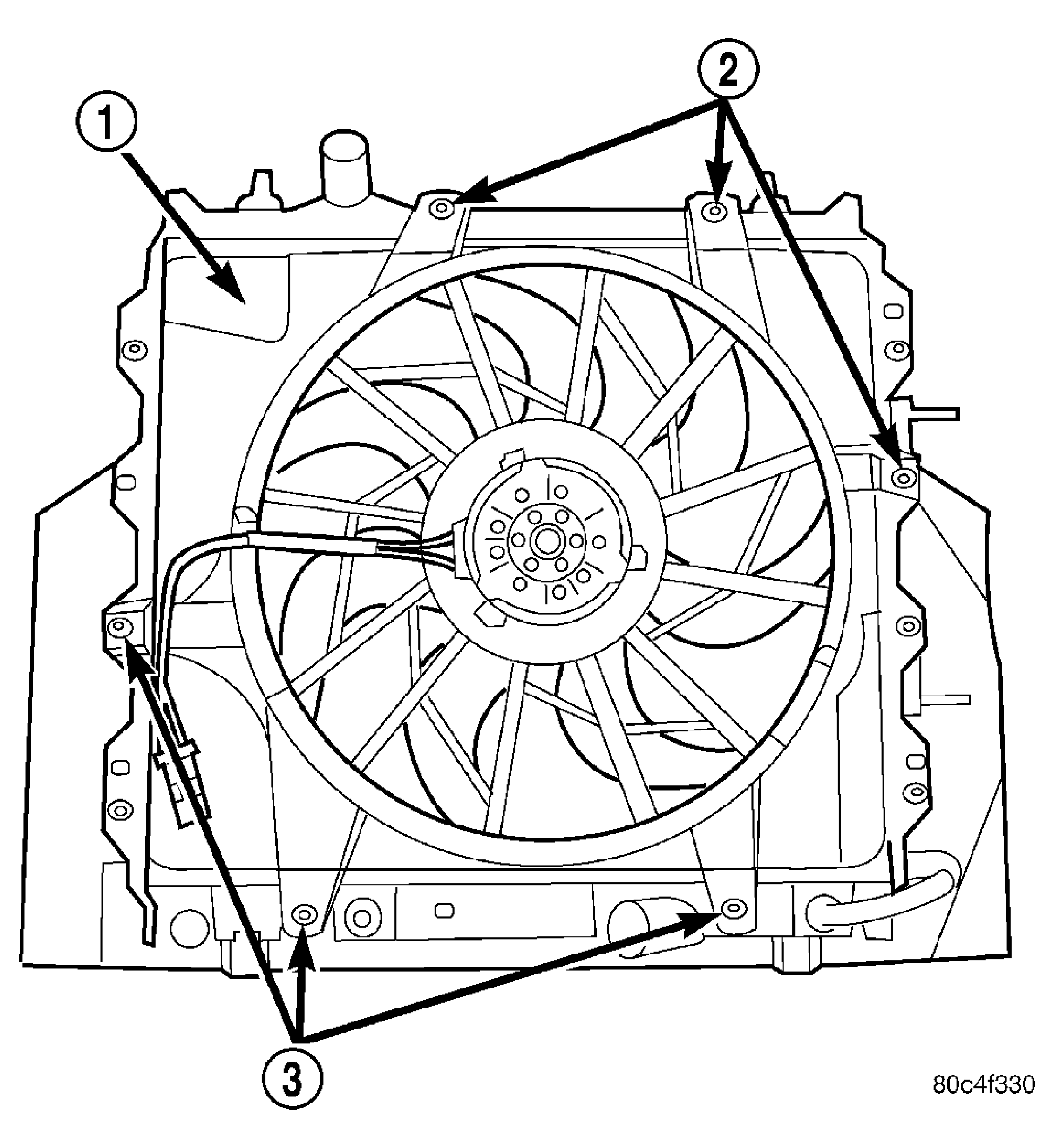

Fig 1: Radiator Fan & Shroud
GC0021817Courtesy of CHRYSLER LLC
1 - RADIATOR FAN SHROUD
2 - SCREWS
3 - SCREWS

The radiator cooling fan is a dual-speed electric motor driven fan. The radiator fan assembly includes an electric motor, fan blade, and a support shroud (1) that is attached to the radiator. The radiator fan is serviced as an assembly.
