Description-Diesel Engines

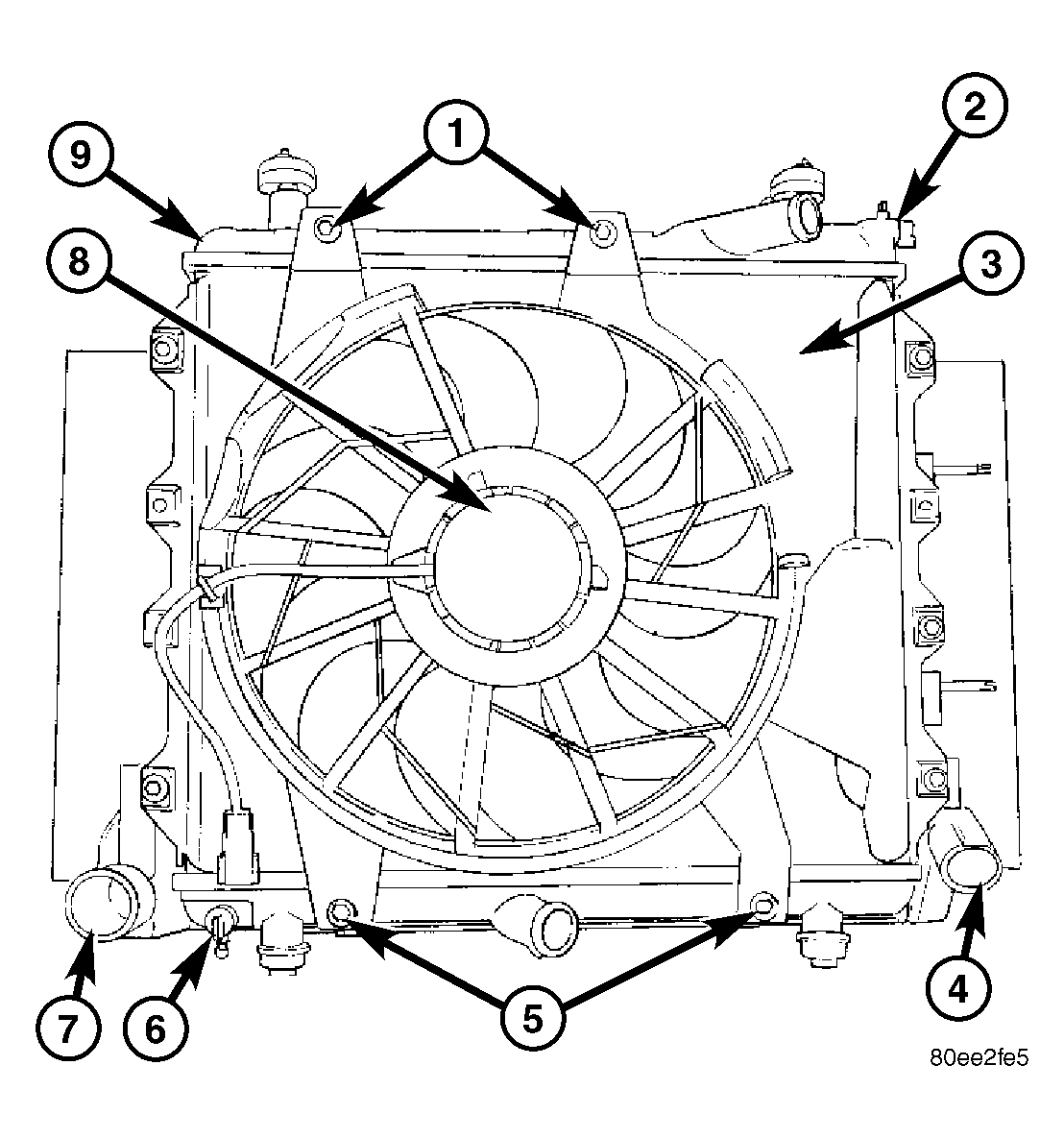

Fig 1: Radiator Fan - Diesel

Courtesy of CHRYSLER LLC

1 - SCREWS

2 - RADIATOR VENT VALVE

3 - COOLING FAN SHROUD

4 - CHARGE AIR COOLER INLET

5 - SCREWS

6 - RADIATOR DRAINCOCK

7 - CHARGE AIR COOLER OUTLET

8 - COOLING FAN

9 - RADIATOR

The radiator cooling fan is a dual-speed electric motor driven fan. The radiator fan assembly includes an electric motor, fan blade (8), and a support shroud (3) that is attached to the radiator (9). The radiator fan is serviced as an assembly.
