Container-Coolant Recovery: Installation: Installation-1.6L

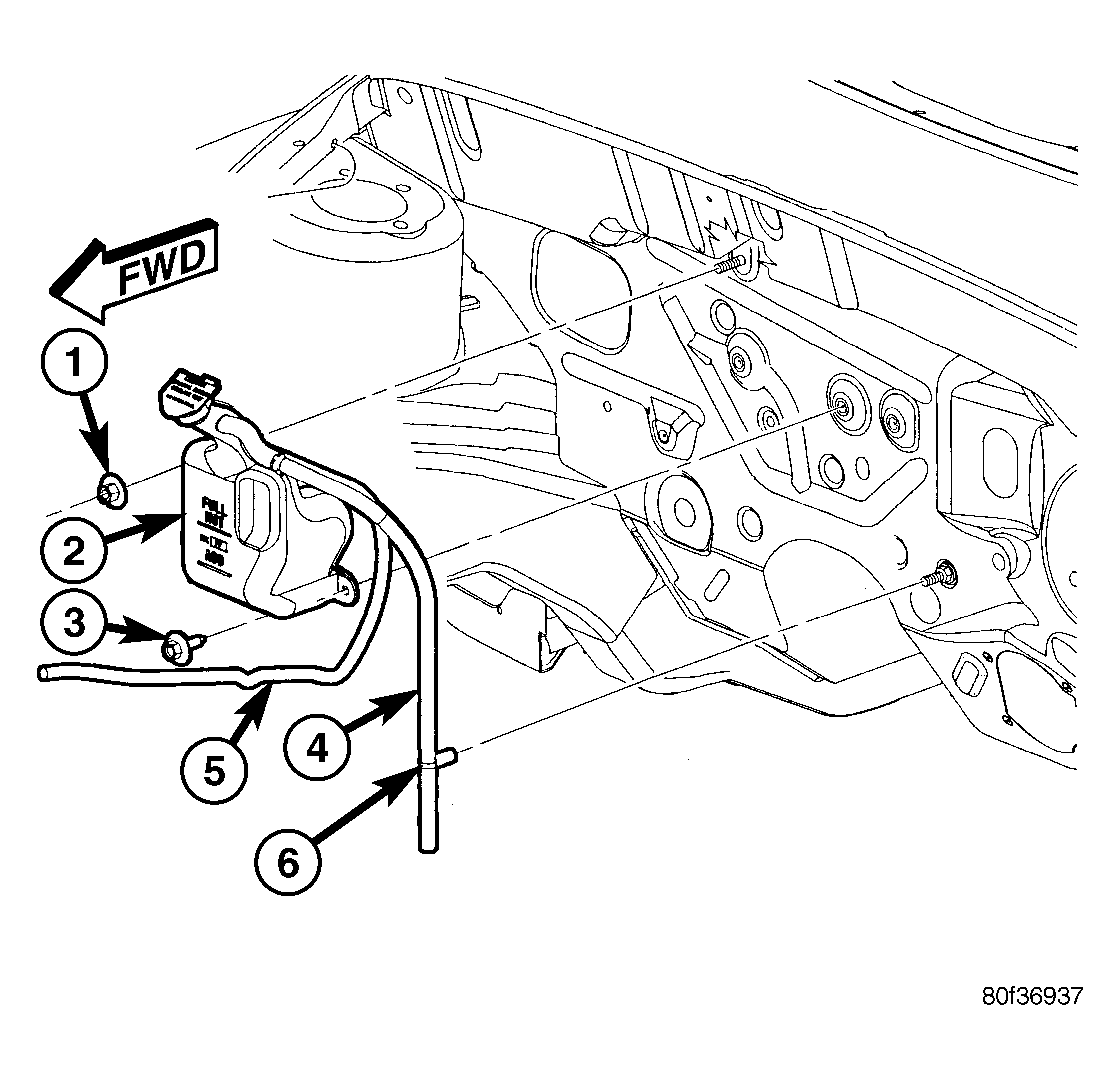

Fig 1: Coolant Recovery Container

Courtesy of CHRYSLER LLC

1 - NUT

2 - COOLANT RECOVERY CONTAINER

3 - SCREW

4 - VENT HOSE

5 - OVERFLOW HOSE

6 - CLIP

1. Engage coolant recovery container into washer fluid reservoir.
2. Install coolant recovery container mounting screw (3) and tighten to 4 N.m (35 in. lbs.).

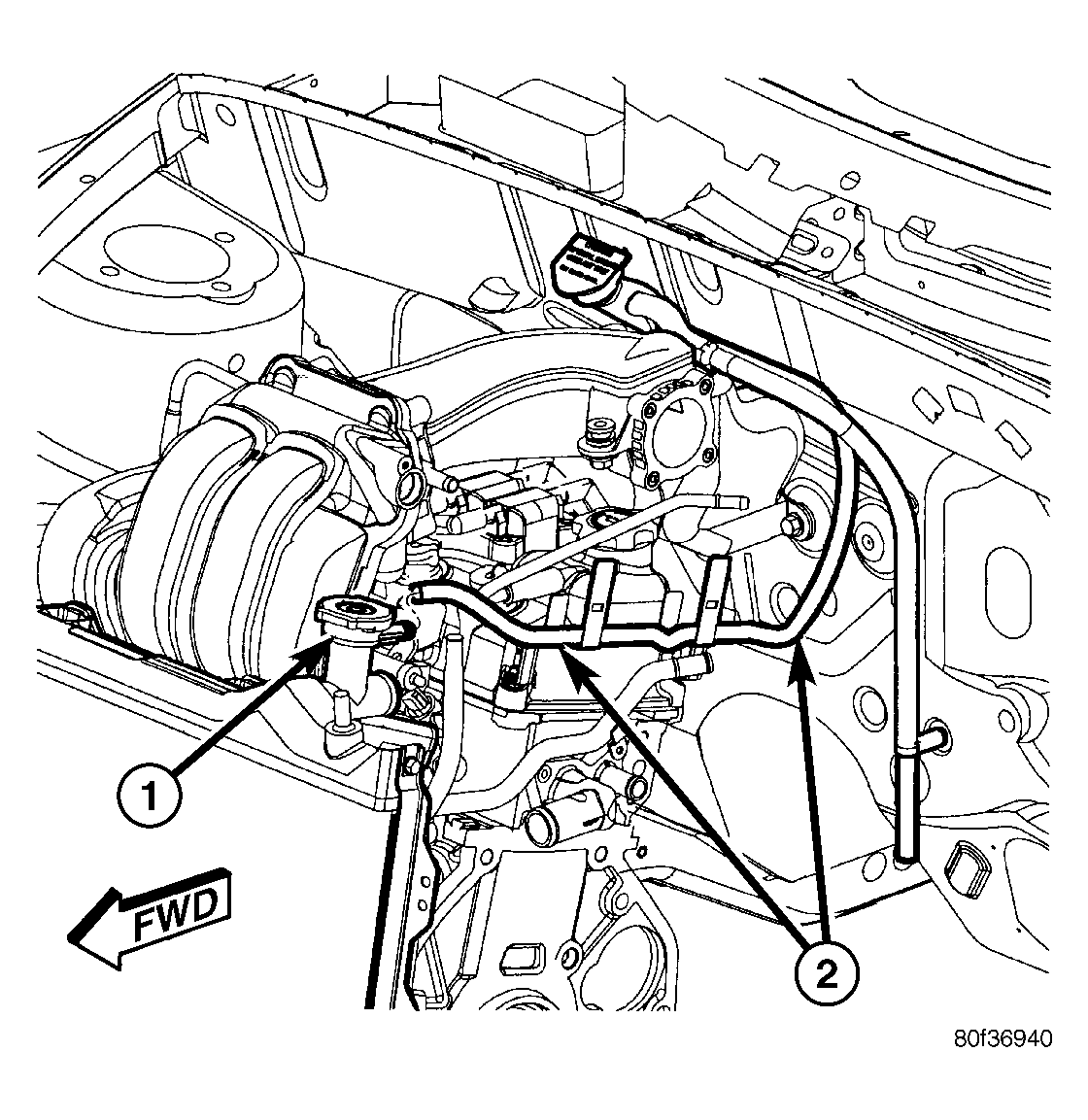

   Fig 2: Overflow Hose Routing

   Courtesy of CHRYSLER LLC

   1 - RADIATOR NECK

   2 - OVERFLOW HOSE

3. Connect hose (2) at upper radiator Tee.
4. Fill coolant recovery container to proper level.
