Rear Suspension: Axle-Rear: Description: Axle

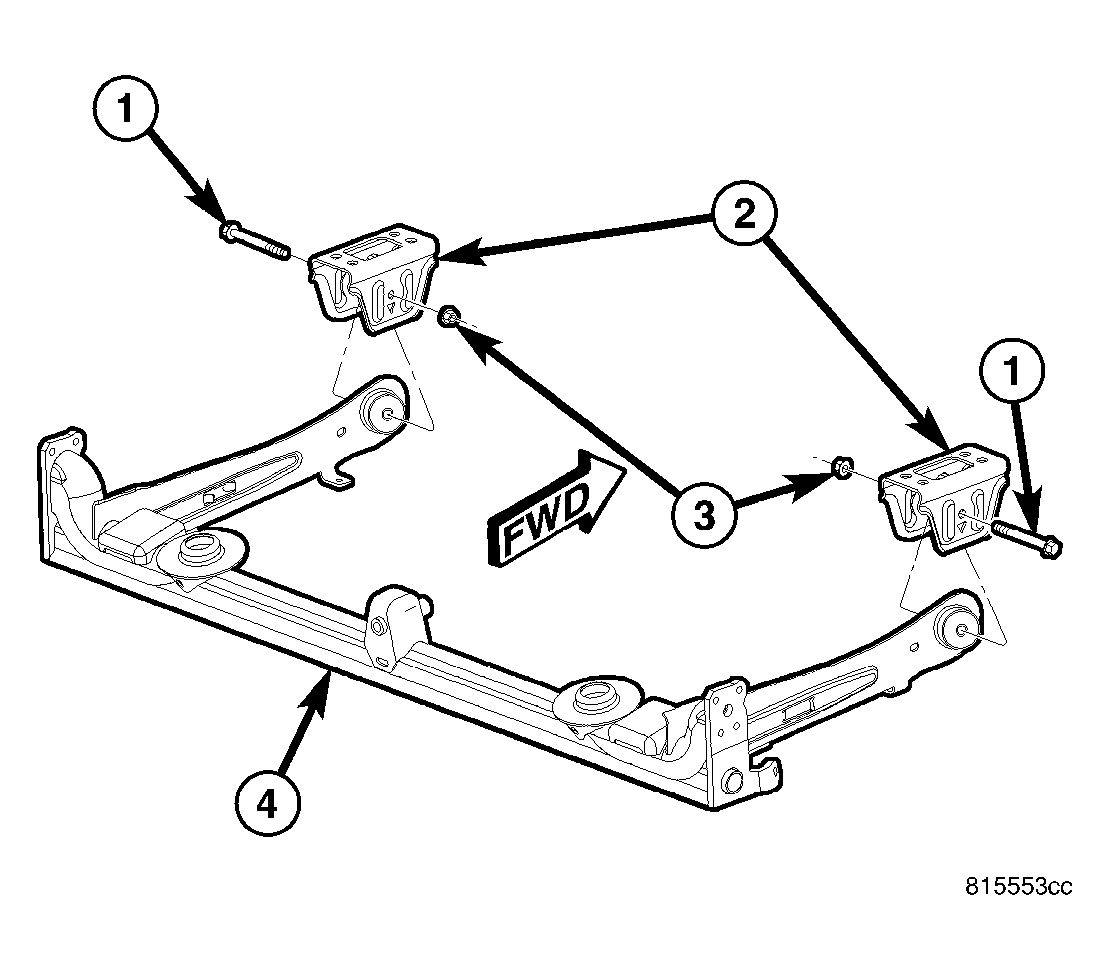

The steel rear axle (4) on this vehicle is a twist beam design. It has a tubular torsion tube running through the center of its width. It also has two trailing arms, one extending from each end of the axle forward. Each trailing arm has a rubber pivot bushing pressed into it. Two coil spring perches are mounted to its top surface in line with the rear wheel center.
