Lock Cylinder Housing

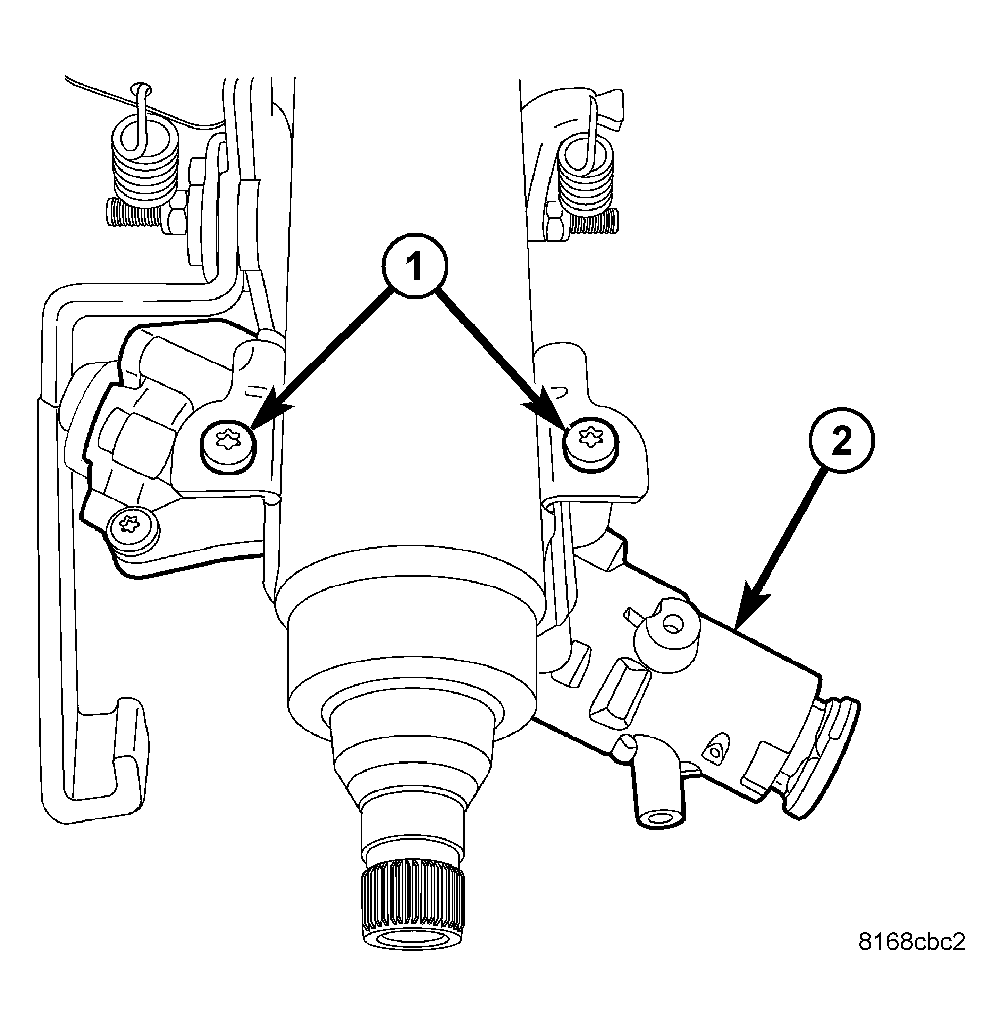

Fig 1: View Of Lock Cylinder Housing Mounting
GC0042960Courtesy of CHRYSLER LLC
  1. Position the lock cylinder housing in the RUN position.
  2. Align the lock cylinder housing (2) with the steering column.
  3. Using Torx® Plus Bit, Special Tool 10041 or equivalent Tamper-Proof Torx® Plus (five point) 30 bit, install the two screws (1) fastening the lock cylinder housing (2) to the column. Tighten the screws to 16 N.m (142 in. lbs.).
