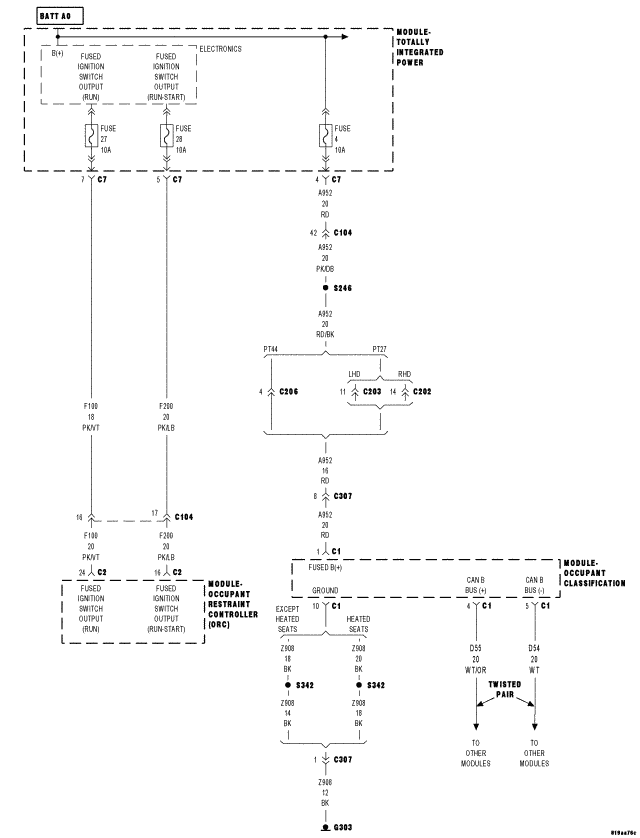

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B2102 To U0121 >> B212C-Ignition Run/Start Input Circuit Open >> Circuit Schematic
