Glow Plug

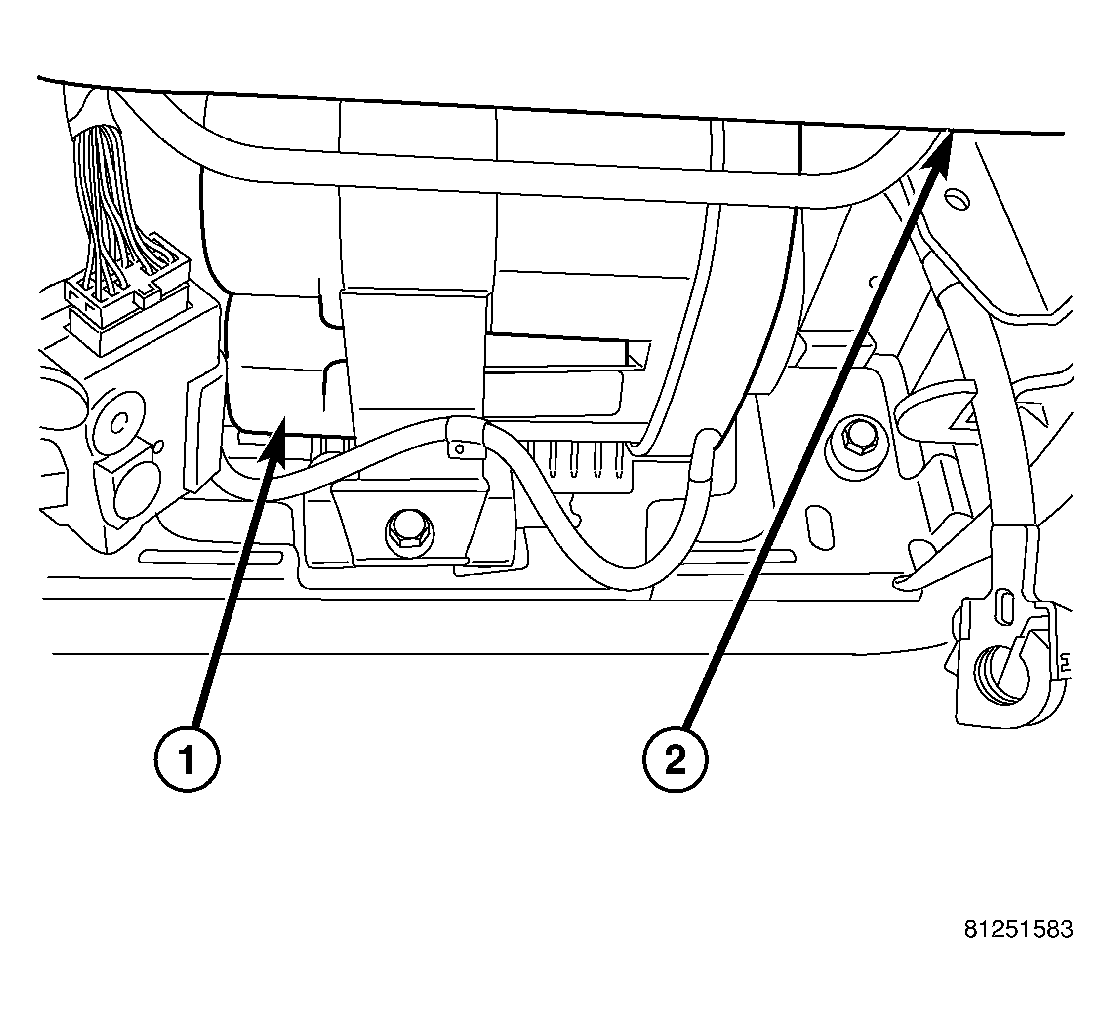

Fig 1: Location Of Battery

GC0043576

Courtesy of CHRYSLER LLC

1 - BATTERY

2 - PASSENGER SEAT

Disconnect negative battery (1) cable.

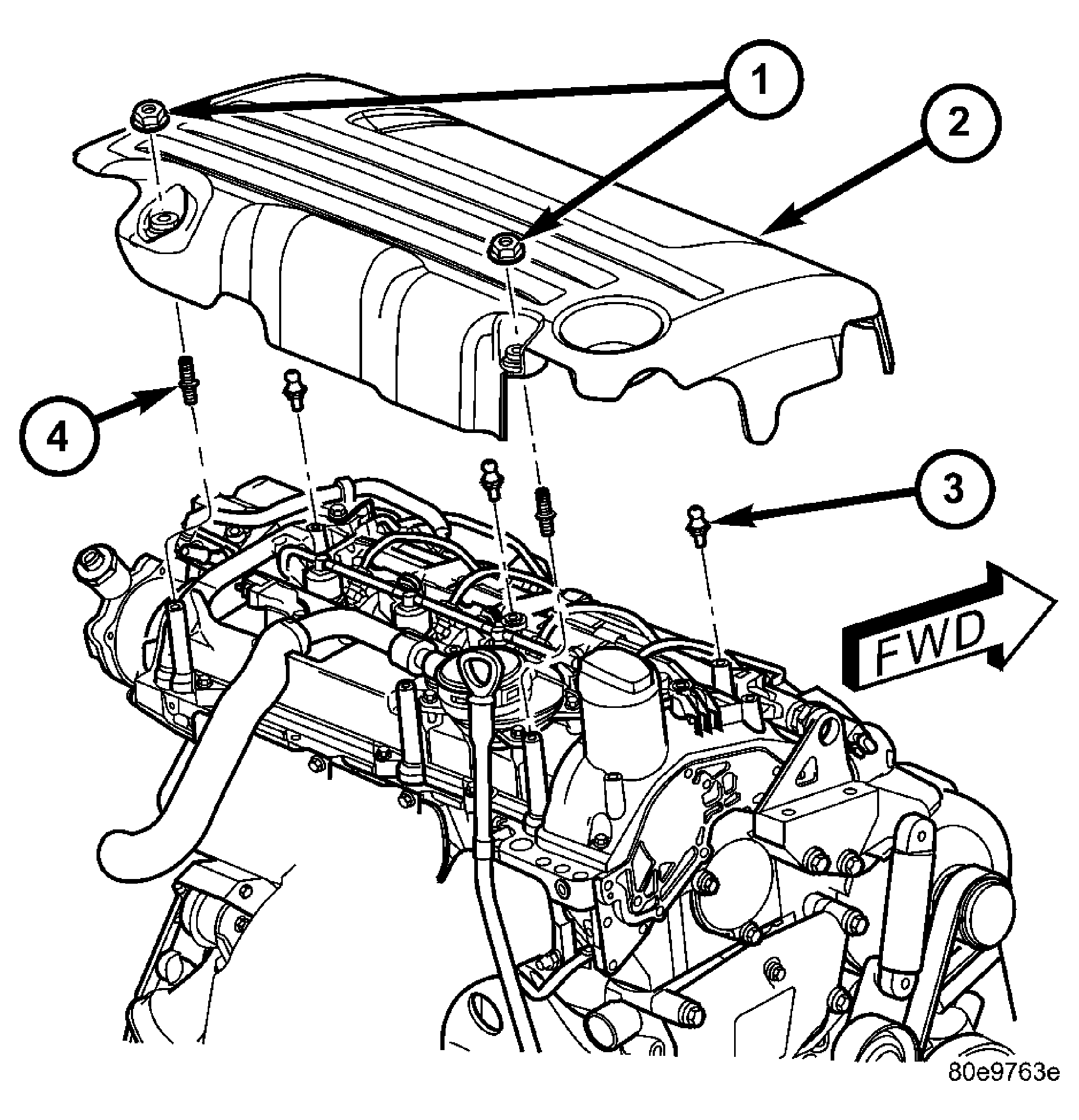

Fig 2: Engine Cover Mounts

GC0043577

Courtesy of CHRYSLER LLC

1 - ENGINE COVER RETAINING NUTS

2 - ENGINE COVER

3 - ENGINE COVER MOUNTS

4 - ENGINE COVER MOUNTING STUDS

Remove engine cover (2). Refer to REMOVAL.

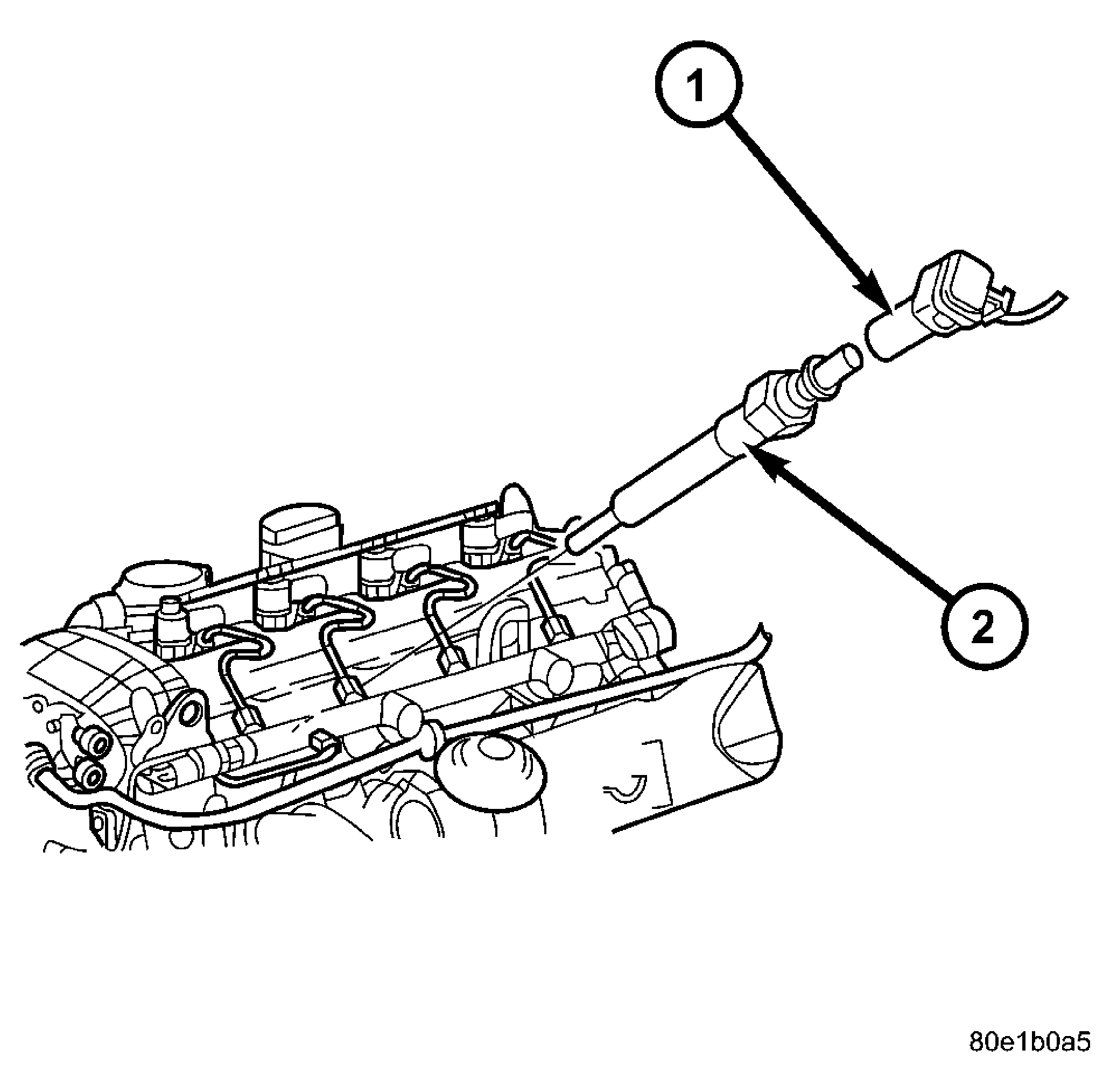

Fig 3: Glow Plug Location - Typical
Courtesy of CHRYSLER LLC

1 - GLOW PLUG ELECTRICAL CONNECTOR

2 - GLOW PLUG

NOTE: Before removing glow plugs, blow off the top of the engine with compressed air.
Disconnect glow plug electrical connector (1). See Fig 3.
Remove glow plug (2) from cylinder head. See Fig 3.
