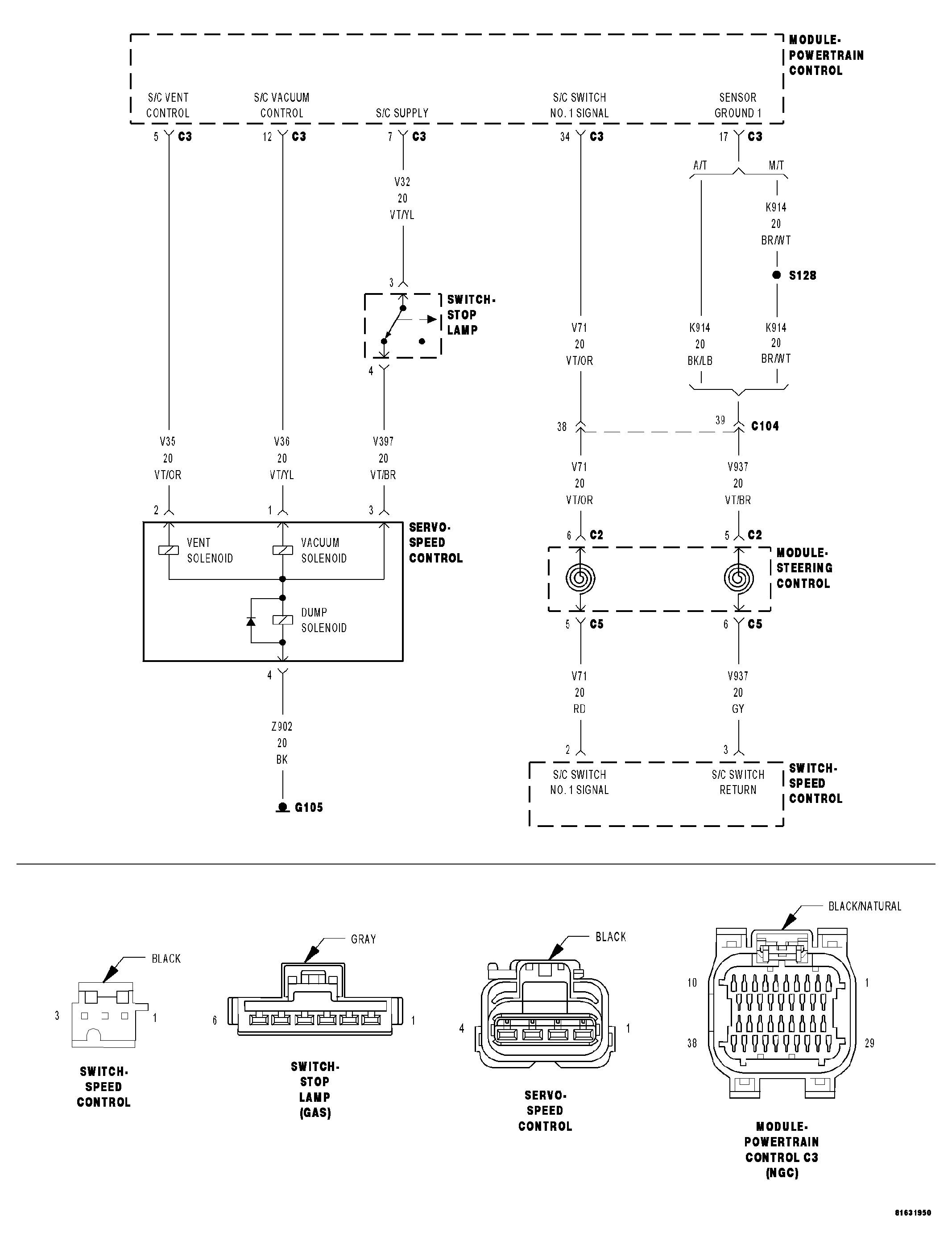

Home >> Chrysler >> 2007 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P050D To P0688 >> P0594-Speed Control Servo Power Circuit >> Circuit Schematic
